Inverting charge pump DC/DC controller and regulator. Features a maximum input voltage of 10V and a minimum input voltage of 1.5V, with an adjustable output voltage range from 1.5V to 20V. Delivers up to 20mA output current with a dropout voltage of 500mV. Operates with a supply voltage of 30V and a low operating supply current of 30uA. Packaged in an 8-pin PDIP for through-hole mounting.
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Maxim MAX1044CPA+ technical specifications.
General
Package/Case
PDIP
Dropout Voltage
500mV
Height
4.45mm
Lead Free
Lead Free
Length
9.91mm
Logic Function
Inverting
Max Input Voltage
10V
Min Input Voltage
1.5V
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Output Current
200uA
Max Output Voltage
10V
Min Output Voltage
1.5V
Max Supply Voltage
200V
Mount
Through Hole
Number of Outputs
1
Operating Supply Current
30uA
Operating Supply Voltage
30V
Output Current
20mA
Output Type
Fixed, Adjustable
Output Voltage
20V
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Synchronous Rectifier
No
Topology
Boost, Charge Pump
Weight
0.032805oz
Width
7.87mm
Compliance
RoHS
Compliant
Datasheet
Maxim MAX1044CPA+ Datasheet
Download the complete datasheet for Maxim MAX1044CPA+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

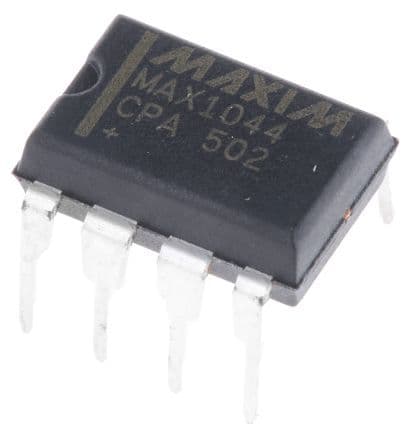

Product Images
