Analog Front End (AFE) IC featuring a single 10-bit Analog-to-Digital Converter (ADC) with 4 channels and four 10-bit Digital-to-Analog Converters (DACs) with 4 channels. Operates with analog and digital supply types, a reference voltage of 4.096V, and a sampling rate of 225 kS/s. Interface options include SPI and Serial, with a supply voltage range of 4.75V to 5.25V. This surface-mount component, measuring 6mm x 0.73mm, is RoHS compliant and operates between -40°C and 85°C.
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX1046BETX+ technical specifications.
General
| Converter Type | ADC |
| Height | 0.73mm |
| Interface | SPI, Serial |
| Lead Free | Lead Free |
| Length | 6mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Mount | Surface Mount |
| Number of A/D Converters | 1 |
| Number of ADC Channels | 4 |
| Number of Bits | 10 |
| Number of Channels | 4 |
| Number of D/A Converters | 4 |
| Number of DAC Channels | 4 |
| Package Quantity | 10 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reference Voltage | 4.096V |
| Resolution | 10b |
| RoHS Compliant | Yes |
| Sampling Rate | 225000S/s |
| Series | MAX1046B |
| Supply Type | Analog, Digital |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX1046BETX+ Datasheet
Download the complete datasheet for Maxim MAX1046BETX+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

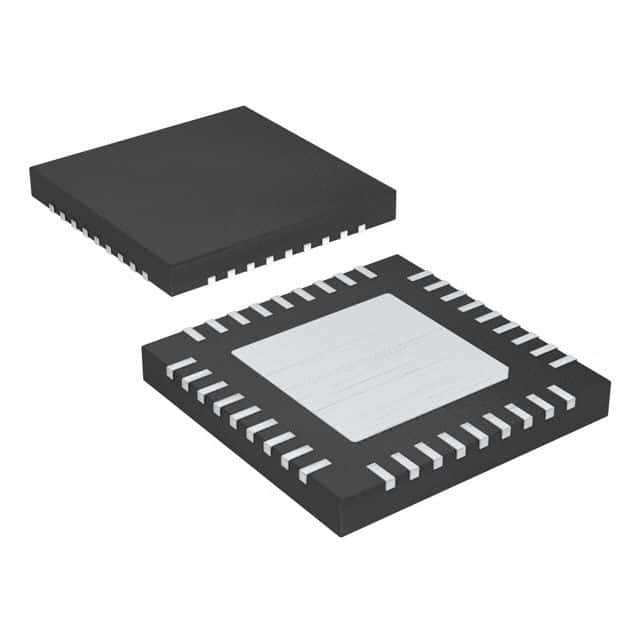

Product Images
