RS-422/RS-485 bus transceiver IC, featuring a single driver and receiver for half-duplex communication. Operates with a supply voltage of 4.5V to 5.5V, supporting a data rate of 250Kbps. Packaged in a 14-pin PDIP with through-hole mounting, this lead-free component offers a wide operating temperature range from -40°C to 85°C.
PackagePDIP
Current95mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Maxim MAX1480BEPI+ technical specifications.
General
| Package/Case | PDIP |
| Data Rate | 250Kbps |
| Height | 5.08mm |
| Interface | RS-422, RS-485 |
| Lead Free | Lead Free |
| Length | 37.34mm |
| Logic Function | Transceiver |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 727mW |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Number of Drivers | 1 |
| Number of Receivers | 1 |
| Number of Transceivers | 1 |
| Number of Transmitters | 1 |
| Operating Supply Voltage | 5V |
| Package Quantity | 14 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | Unknown |
| Receiver Hysteresis | 70mV |
| RoHS Compliant | Yes |
| Simplex/Duplex | Half Duplex |
| Supply Current | 95mA |
| Width | 14.61mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX1480BEPI+ Datasheet
Download the complete datasheet for Maxim MAX1480BEPI+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

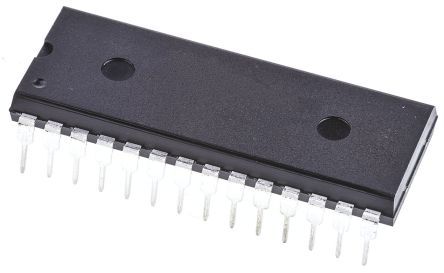

Product Images
