Half-duplex RS-485 transceiver IC supporting data rates up to 40Mbps. Features a single driver and receiver with a 12ns propagation delay. Operates from a 3V to 3.6V supply, with a typical 3.3V operating voltage and 1.5mA supply current. Designed for surface mount applications in an 8-pin TDFN package, suitable for extended temperature ranges from -40°C to 125°C. RoHS compliant and supplied on tape and reel.
Current1.5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX14840EATA+T technical specifications.
General
| Data Rate | 40Mbps |
| Interface | RS-485 |
| Logic Function | Transceiver |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Drivers | 1 |
| Number of Receivers | 1 |
| Number of Transmitters | 1 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Propagation Delay | 12ns |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Simplex/Duplex | Half Duplex |
| Supply Current | 1.5mA |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX14840EATA+T Datasheet
Download the complete datasheet for Maxim MAX14840EATA+T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

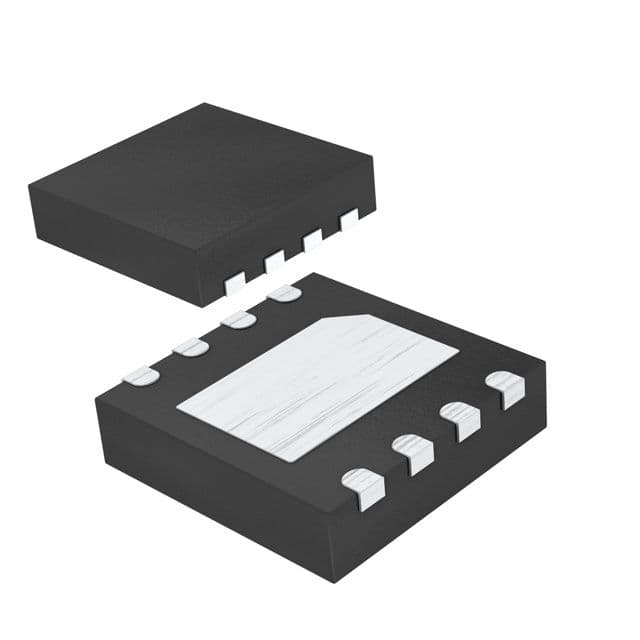

Product Images
