Maxim
MAX1543ETP-T

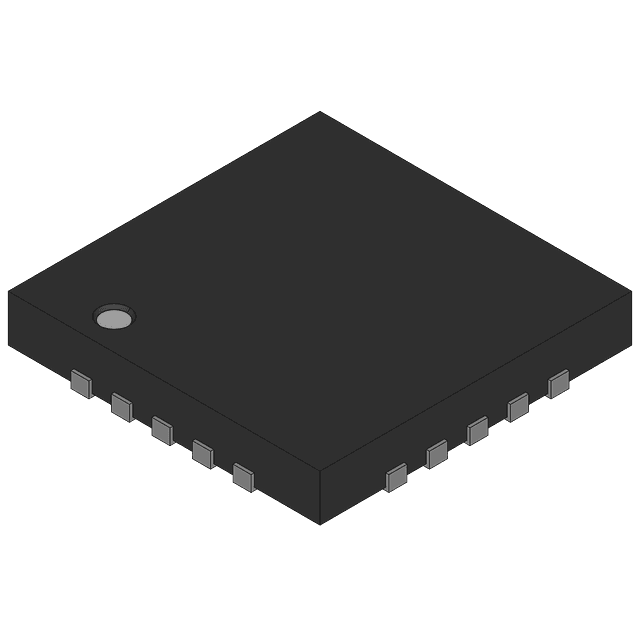

Switching Regulator, Current-mode, 1.8A, 1400kHz Switching Freq-Max, BICMOS, PQCC20, 5 X 5 MM, 0.8 MM HEIGHT, EXPOSED PAD, TQFN-20
Quick Jump:
Technical Specifications
Maxim MAX1543ETP-T technical specifications.
General
| Max Operating Temperature | 85 |
| Number of Terminals | 20 |
| Min Operating Temperature | -40 |
| Terminal Position | QUAD |
| JEDEC Package Code | S-PQCC-N20 |
| Width | 5 |
| Length | 5 |
| Pin Count | 20 |
| Number of Functions | 1 |
| Temperature Grade | INDUSTRIAL |
| Input Voltage-Max | 5.5 |
| Input Voltage-Min | 2.6 |
Compliance
| RoHS | No |
| Eccn Code | EAR99 |
| Lead Free | No |
| HTS Code | 8542.39.00.01 |
| REACH | not_compliant |
| Military Spec | False |
Datasheet
Maxim MAX1543ETP-T Datasheet
Download the complete datasheet for Maxim MAX1543ETP-T to view detailed technical specifications.
No datasheet is available for this part.
