Surface mount supervisory circuit IC, featuring 2 monitored voltages and active-low reset with a 140ms timeout. Operates from a 2.2V to 28V supply range, with a maximum power dissipation of 2W and a wide operating temperature range of -40°C to 125°C. This lead-free, RoHS-compliant component consumes 52µA operating supply current and is supplied in tape and reel packaging.
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX16025TE+T technical specifications.
General
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 2W |
| Max Supply Voltage | 28V |
| Min Supply Voltage | 2.2V |
| Mount | Surface Mount |
| Number of Voltages Monitored | 2 |
| Operating Supply Current | 52uA |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Reset | Active Low |
| Reset Timeout | 140ms |
| RoHS Compliant | Yes |
| Type | Sequencer |
| Watchdog Timer | No |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX16025TE+T Datasheet
Download the complete datasheet for Maxim MAX16025TE+T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

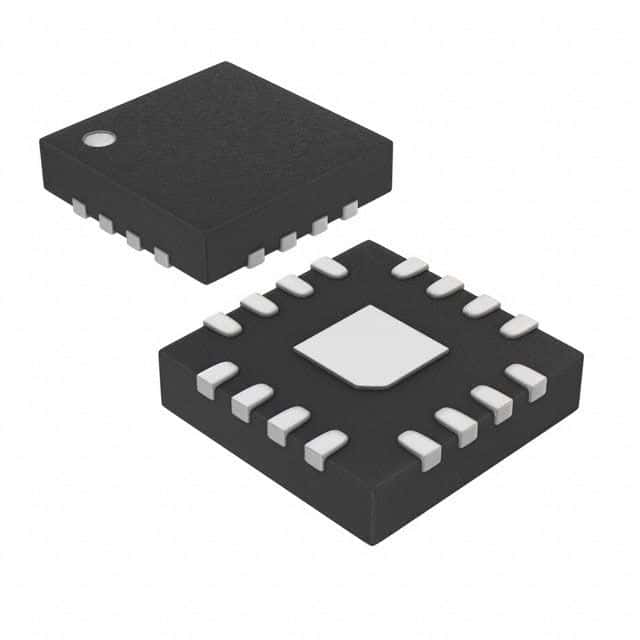

Product Images
