Adjustable positive output boost regulator IC, featuring a 500kHz switching frequency and a 350mA output current. Operates from a 2.4V to 5.5V input, delivering an adjustable output voltage up to 28V. Housed in a compact 8-pin UMAX package with dimensions of 3.05mm x 3.05mm x 0.95mm, this surface-mount component offers a low 230µA supply current and is RoHS compliant.
Frequency500kHz
PackageUMAX
Voltage5V
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX1606EUA+ technical specifications.
General
| Package/Case | UMAX |
| Height | 0.95mm |
| Lead Free | Lead Free |
| Length | 3.05mm |
| Max Frequency | 500kHz |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.4V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 20mA |
| Max Output Voltage | 28V |
| Min Output Voltage | 800mV |
| Max Power Dissipation | 330mW |
| Max Supply Current | 230uA |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Operating Supply Voltage | 5.5V |
| Output Configuration | Positive |
| Output Current | 350mA |
| Output Type | Adjustable |
| Output Voltage | 28V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Synchronous Rectifier | No |
| Topology | Boost |
| Touchscreen | No |
| Voltage | 5V |
| Width | 3.05mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX1606EUA+ Datasheet
Download the complete datasheet for Maxim MAX1606EUA+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

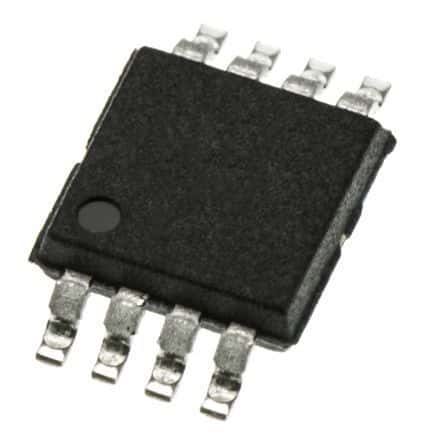

Product Images
