Boost DC/DC controller IC with adjustable or fixed 5V output, capable of 1.5A output current. Features 95% efficiency and 300kHz switching frequency. Operates from 700mV to 5.5V input voltage, with a maximum output voltage of 5.5V. Packaged in a 16-pin SOIC surface mount package, this lead-free component offers a wide operating temperature range of -40°C to 85°C.
Frequency300kHz
PackageSO
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX1703ESE+ technical specifications.
General
Package/Case
SO
Efficiency
95%
Frequency
300kHz
Height
1mm
Lead Free
Lead Free
Length
10mm
Max Input Voltage
5.5V
Min Input Voltage
700mV
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Max Output Voltage
5.5V
Min Output Voltage
2.5V
Max Supply Voltage
5.5V
Min Supply Voltage
700mV
Mount
Surface Mount
Nominal Output Voltage
5V
Number of Outputs
1
Output Configuration
Positive
Output Current
1.5A
Output Type
Fixed, Adjustable
Output Voltage
5.5V
Package Quantity
50
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Synchronous Rectifier
Yes
Topology
Boost
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Maxim MAX1703ESE+ Datasheet
Download the complete datasheet for Maxim MAX1703ESE+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

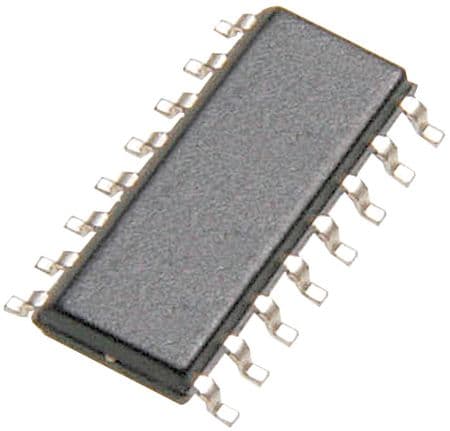

Product Images
