Boost switching regulator for efficient power conversion. Features a 400kHz switching frequency and up to 96% efficiency. Supports adjustable output voltage from 2.5V to 5.5V with a maximum output current of 550mA. Operates with input voltages between 700mV and 5.5V. Packaged in a 16-pin QSOP surface-mount configuration.
Frequency400kHz
PackageQSOP
MountingSurface Mount
Power696mW
Quick Jump:
Technical Specifications
Maxim MAX1706EEE technical specifications.
General
| Package/Case | QSOP |
| Efficiency | 96% |
| Frequency | 400kHz |
| Lead Free | Contains Lead |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 700mV |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 550mA |
| Max Output Voltage | 5.5V |
| Min Output Voltage | 2.5V |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 700mV |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Current | 400mA |
| Output Power | 696mW |
| Output Type | Adjustable |
| Output Voltage | 5.5V |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | No |
| Synchronous Rectifier | No |
| Termination | SMD/SMT |
| Topology | Boost |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Maxim MAX1706EEE Datasheet
Download the complete datasheet for Maxim MAX1706EEE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

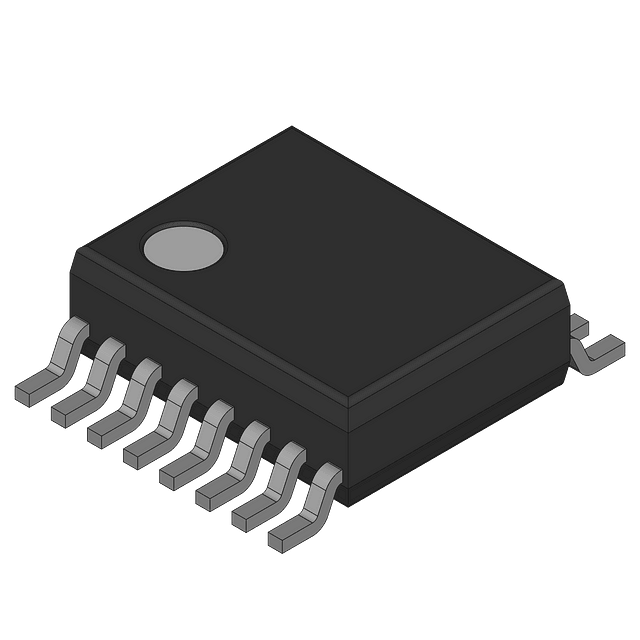

Product Images
