Negative adjustable linear voltage regulator IC, offering a 200mA output current with 1% accuracy. Features a low 80mV dropout voltage and a -1.25V reference voltage. Operates with input voltages from -2.5V to -6.5V, and has a maximum power dissipation of 571mW. Packaged in a SOT-23 surface mount case, this RoHS compliant component is supplied on tape and reel.
PackageSOT-23
MountingSurface Mount
PolarityNegative
Quick Jump:
Technical Specifications
Maxim MAX1735EUK30+T technical specifications.
General
| Accuracy | 1% |
| Package/Case | SOT-23 |
| Dropout Voltage | 80mV |
| Input Bias Current | 85uA |
| Lead Free | Lead Free |
| Min Current Limit | 1.02A |
| Max Input Voltage | -6.5V |
| Min Input Voltage | -2.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 571mW |
| Mount | Surface Mount |
| Nominal Output Voltage | 3V |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Current | 200mA |
| Output Type | Fixed, Adjustable |
| Output Voltage | -5.5V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Negative |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reference Voltage | -1.25V |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX1735EUK30+T Datasheet
Download the complete datasheet for Maxim MAX1735EUK30+T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

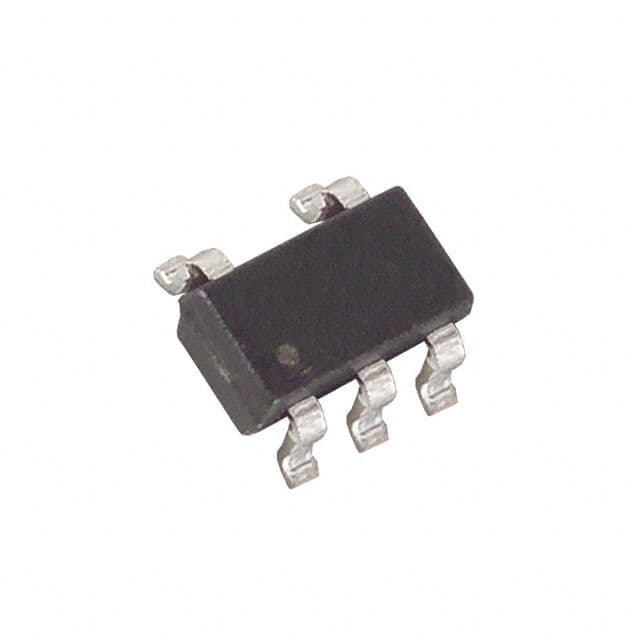

Product Images
