High-voltage DC/DC switching controller for power management. Features a wide 4.5V to 36V input voltage range and a maximum output current of 10A at a 5V output voltage. Designed for surface mount applications with a compact UMAX package measuring 3.05mm x 3.05mm x 0.95mm. Operates across a temperature range of -40°C to 85°C, offering a maximum duty cycle of 100%. This RoHS compliant component is lead-free and suitable for single-phase positive output configurations.
PackageUMAX
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX1744EUB+ technical specifications.
General
| Package/Case | UMAX |
| Clock Sync | No |
| Height | 0.95mm |
| Lead Free | Lead Free |
| Length | 3.05mm |
| Max Duty Cycle | 100% |
| Max Input Voltage | 36V |
| Min Input Voltage | 4.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 10A |
| Max Output Voltage | 5V |
| Max Supply Voltage | 36V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Output Phases | 1 |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Current | 10A |
| Output Voltage | 5V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Synchronous Rectifier | No |
| Width | 3.05mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX1744EUB+ Datasheet
Download the complete datasheet for Maxim MAX1744EUB+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

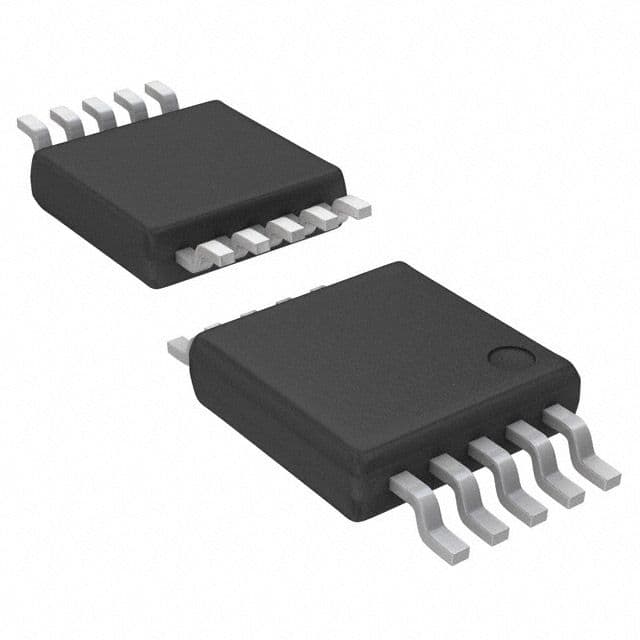

Product Images
