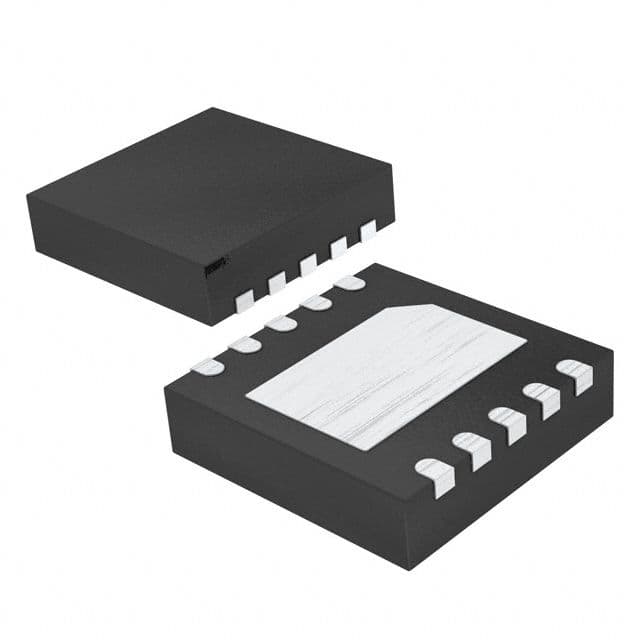

The MAX1760HETB-T is an industrial DC/DC controller with a maximum input voltage of 5.5V. It features a 10-pin HVSON package and operates over a temperature range of -40°C to 85°C. This device is suitable for use in industrial applications.
Quick Jump:
Technical Specifications
Maxim MAX1760HETB-T technical specifications.
General
| Max Operating Temperature | 85 |
| Number of Terminals | 10 |
| Min Operating Temperature | -40 |
| Terminal Position | DUAL |
| JEDEC Package Code | S-PDSO-N10 |
| Width | 3 |
| Length | 3 |
| Pin Count | 10 |
| Number of Functions | 1 |
| Temperature Grade | INDUSTRIAL |
| Input Voltage-Max | 5.5 |
Compliance
| RoHS | No |
| Eccn Code | EAR99 |
| Lead Free | No |
| HTS Code | 8542.39.00.01 |
| REACH | not_compliant |
| Military Spec | False |
Datasheet
Maxim MAX1760HETB-T Datasheet
Download the complete datasheet for Maxim MAX1760HETB-T to view detailed technical specifications.
No datasheet is available for this part.
