Positive adjustable linear voltage regulator IC, offering a 500mA output current with a 1.5% accuracy. Features a 1.25V reference voltage and a 500mA maximum output current. Operates with an input voltage range of 2.5V to 5.5V, providing an adjustable output voltage from 1.25V to 5V. Housed in an 8-pin UMAX package for surface mounting, this RoHS compliant component boasts a maximum power dissipation of 1.3W and operates across a temperature range of -40°C to 85°C.
PackageUMAX
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Maxim MAX1792EUA15+ technical specifications.
General
| Accuracy | 1.5% |
| Package/Case | UMAX |
| Input Bias Current | 110uA |
| Lead Free | Lead Free |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 500mA |
| Max Output Voltage | 5V |
| Min Output Voltage | 1.25V |
| Max Power Dissipation | 1.3W |
| Mount | Surface Mount |
| Nominal Output Voltage | 1.5V |
| Number of Outputs | 2 |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 500mA |
| Output Type | Fixed, Adjustable |
| Output Voltage | 1.5V |
| Packaging | Rail/Tube |
| Polarity | Positive |
| Quiescent Current | 250uA |
| Reach SVHC Compliant | Unknown |
| Reference Voltage | 1.25V |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX1792EUA15+ Datasheet
Download the complete datasheet for Maxim MAX1792EUA15+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

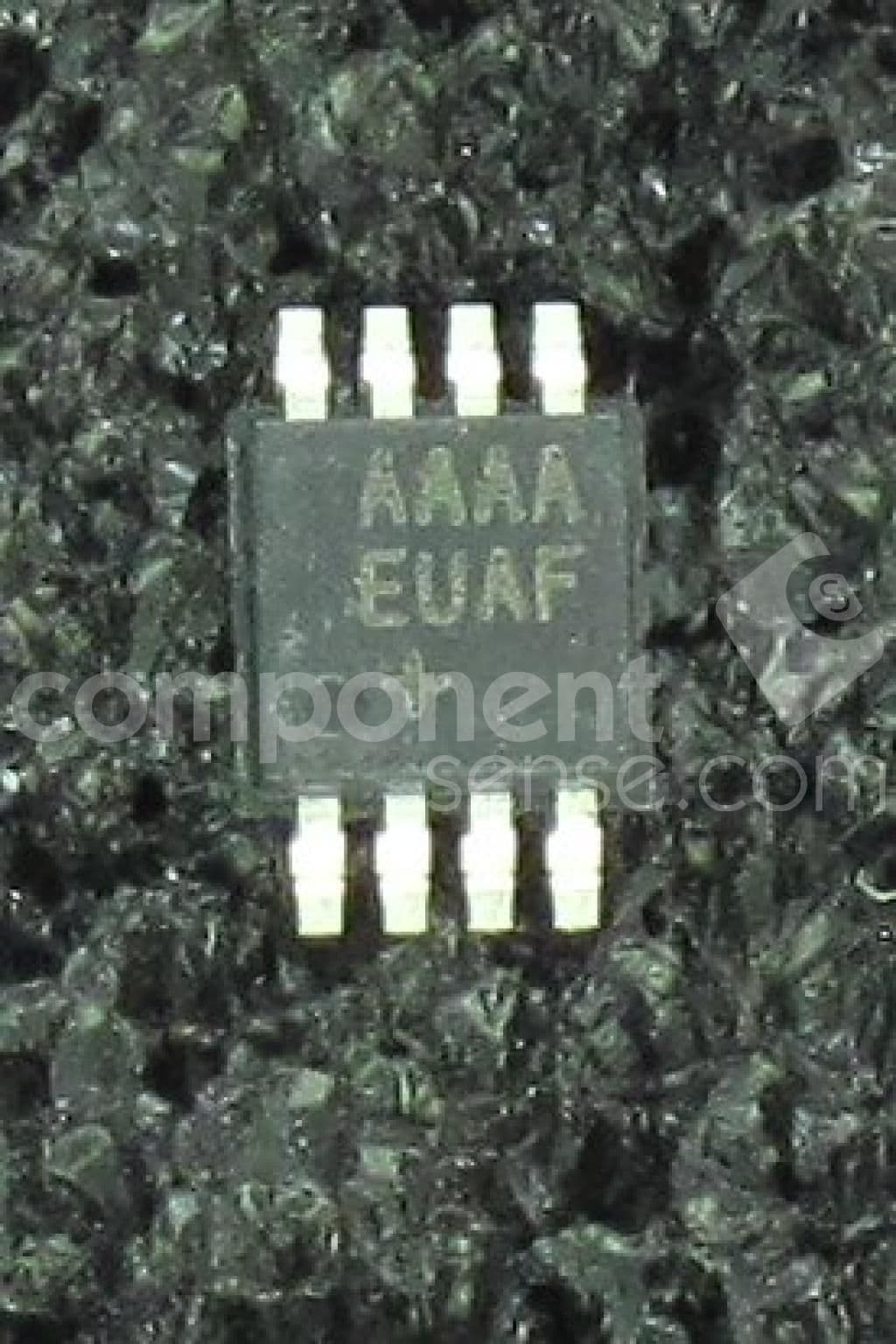

Product Images
