Dual logarithmic detector/controller IC for RF and wireless applications. Features a wide operating frequency range from 100MHz to 3GHz, with a minimum frequency of 30kHz. Operates from a 2.7V to 5.25V supply voltage and offers two channels. Packaged in a 28-pin QFN (5.1mm x 5.1mm x 0.75mm) for surface mounting. RoHS compliant with a maximum operating temperature of 85°C.
Frequency30kHz
PackageQFN
Current43mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX2016ETI+ technical specifications.
General
| Package/Case | QFN |
| Frequency | 30kHz |
| Height | 0.75mm |
| Lead Free | Lead Free |
| Length | 5.1mm |
| Max Frequency | 3GHz |
| Min Frequency | 100MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 2.8W |
| Max Supply Voltage (DC) | 5.25V |
| Min Supply Voltage (DC) | 4.75V |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Operating Supply Current | 16mA |
| Package Quantity | 1 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Supply Current | 43mA |
| Termination | SMD/SMT |
| Width | 5.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX2016ETI+ Datasheet
Download the complete datasheet for Maxim MAX2016ETI+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

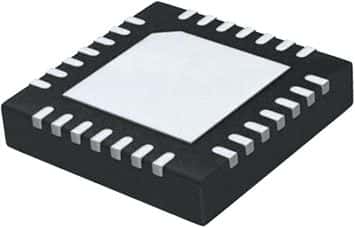

Product Images
