Surface mount quadrature modulator/demodulator IC operating from 650MHz to 1.2GHz. Features a 36-pin QFN package with dimensions of 6.1mm x 6.1mm x 0.75mm. Supports supply voltages from 4.75V to 5.25V, with a maximum supply current of 315mA. Offers an output power of 0.7dBm and operates within a temperature range of -40°C to 85°C. RoHS compliant and lead-free.
Frequency650MHz
PackageQFN
Current271mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX2021ETX+ technical specifications.
General
| Package/Case | QFN |
| Frequency | 650MHz |
| Height | 0.75mm |
| Lead Free | Lead Free |
| Length | 6.1mm |
| Max Frequency | 1.2GHz |
| Min Frequency | 650MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 1.355W |
| Max Supply Current | 315mA |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Mount | Surface Mount |
| Operating Supply Current | 271mA |
| Output Power (dBm) | 0.7dBm |
| Package Quantity | 1 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Supply Current | 271mA |
| Weight | 0.003266oz |
| Width | 6.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX2021ETX+ Datasheet
Download the complete datasheet for Maxim MAX2021ETX+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

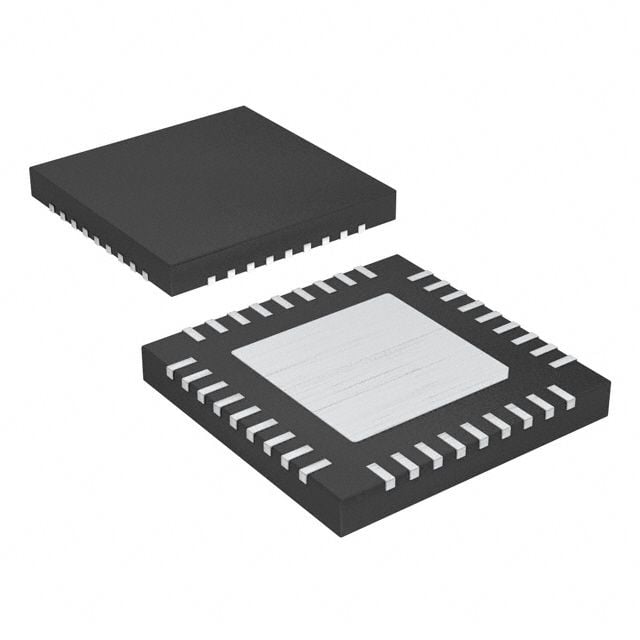

Product Images
