Full duplex bus transceiver IC, featuring 2 drivers and 2 receivers, supporting RS-232 interface. Operates at 5V with a 15mA supply current and a data rate of 120Kbps. Packaged in a 16-pin SOIC surface mount configuration, this lead-free and RoHS compliant component offers a propagation delay of 10µs and receiver hysteresis of 500mV. Suitable for operation between 0°C and 70°C.
PackageSOIC
Voltage5V
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX202CSE+ technical specifications.
General
Package/Case
SOIC
Data Rate
120Kbps
Height
1.5mm
Interface
RS-232
Lead Free
Lead Free
Length
10mm
Logic Function
Transceiver, Receiver
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Mount
Surface Mount
Number of Bits
12
Number of Drivers
2
Number of Receivers
2
Number of Transceivers
1
Number of Transmitters
2
Operating Supply Current
15mA
Operating Supply Voltage
5V
Packaging
Rail/Tube
Propagation Delay
10us
Receiver Hysteresis
500mV
RoHS Compliant
Yes
Simplex/Duplex
Full Duplex
Voltage
5V
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Maxim MAX202CSE+ Datasheet
Download the complete datasheet for Maxim MAX202CSE+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

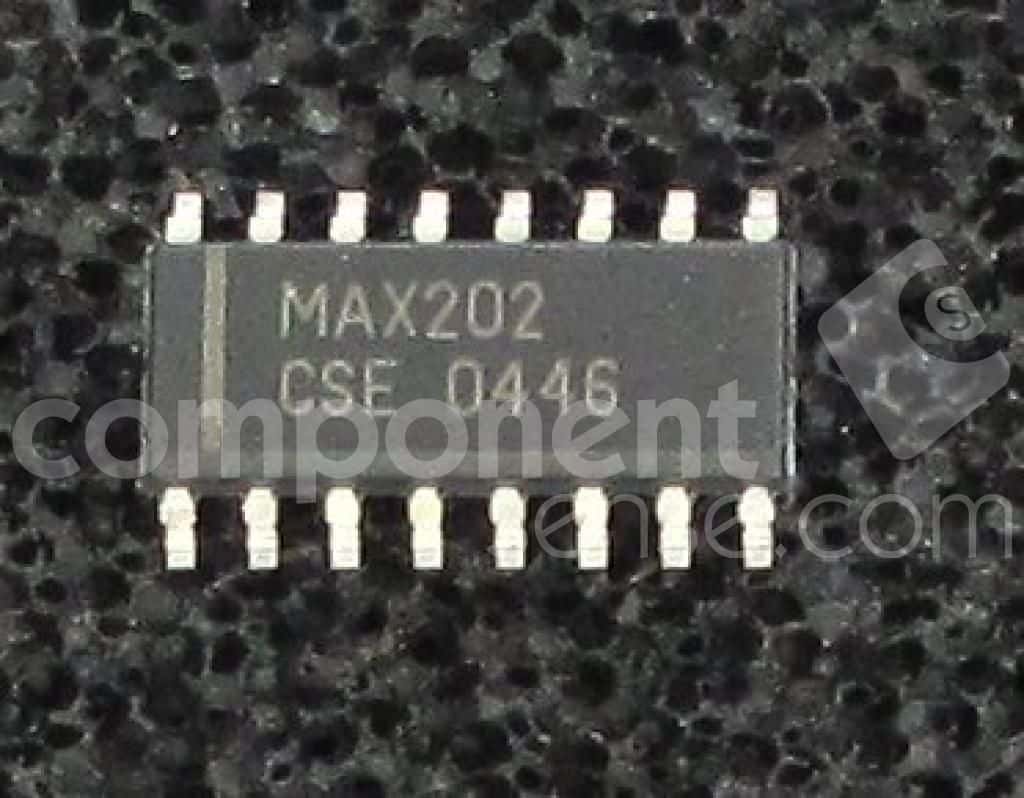

Product Images
