Surface mount transceiver IC featuring an RS-232 interface, operating at a 120Kbps data rate. This full-duplex component offers 2 drivers and 2 receivers, with 8 total I/Os. It functions within a 4.5V to 5.5V supply voltage range, typically at 5V, and has a supply current of 15mA. The SOIC package measures 10mm in length, 4mm in width, and 1.5mm in height, with a propagation delay of 10µs and receiver hysteresis of 500mV. Operating temperature range is -40°C to 85°C, and the component is RoHS compliant.
PackageSOIC
Current15mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX202EESE+ technical specifications.
General
| Package/Case | SOIC |
| Data Rate | 120Kbps |
| Height | 1.5mm |
| Interface | RS-232 |
| Lead Free | Lead Free |
| Length | 10mm |
| Logic Function | Transceiver, Receiver |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Number of Drivers | 2 |
| Number of I/Os | 8 |
| Number of Receivers | 2 |
| Number of Transceivers | 1 |
| Number of Transmitters | 2 |
| Operating Supply Voltage | 5V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Propagation Delay | 10us |
| Reach SVHC Compliant | Unknown |
| Receiver Hysteresis | 500mV |
| RoHS Compliant | Yes |
| Simplex/Duplex | Full Duplex |
| Supply Current | 15mA |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX202EESE+ Datasheet
Download the complete datasheet for Maxim MAX202EESE+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

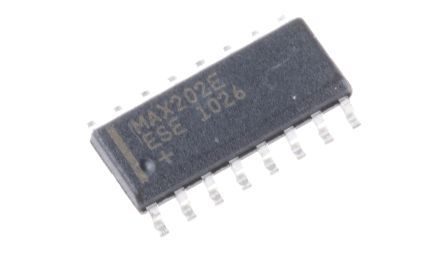

Product Images
