RS-232 transceiver IC featuring 2 drivers and 2 receivers, operating with a 4.5V to 5.5V supply. This surface-mount SOIC-16 package component supports RS-232 interface and full-duplex communication with a data rate of 200Kbps. It offers 8 I/Os, a 1µs propagation delay, and 500mV receiver hysteresis, with a maximum supply current of 10mA.
PackageSOIC
Current10mA
Current Rating4mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX232AEWE+ technical specifications.
General
Package/Case
SOIC
Current Rating
4mA
Data Rate
200Kbps
Height
2.35mm
Interface
RS-232
Lead Free
Lead Free
Length
10.5mm
Logic Function
Transceiver, Receiver
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Drivers
2
Number of I/Os
8
Number of Receivers
2
Number of Transceivers
1
Number of Transmitters
2
Operating Supply Voltage
5V
Package Quantity
46
Packaging
Rail/Tube
Propagation Delay
1us
Reach SVHC Compliant
Unknown
Receiver Hysteresis
500mV
RoHS Compliant
Yes
Simplex/Duplex
Full Duplex
Supply Current
10mA
Width
7.6mm
Compliance
RoHS
Compliant
Datasheet
Maxim MAX232AEWE+ Datasheet
Download the complete datasheet for Maxim MAX232AEWE+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

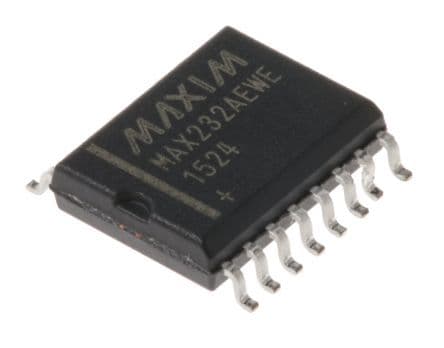

Product Images
