Full-duplex RS-232 transceiver IC, featuring 2 drivers and 2 receivers. This surface-mount logic component operates at 5V with a 10mA supply current and supports a 120Kbps data rate. Housed in a 16-SOIC package, it offers 8 I/Os and a propagation delay of 10µs. Designed for a 0°C to 70°C operating temperature range, this lead-free, RoHS-compliant device is ideal for serial communication interfaces.
PackageSOIC
Current10mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX232CSE+ technical specifications.
General
| Package/Case | SOIC |
| Data Rate | 120Kbps |
| Height | 1.5mm |
| Interface | RS-232 |
| Lead Free | Lead Free |
| Length | 10mm |
| Logic Function | Transceiver, Receiver |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Mount | Surface Mount |
| Number of Drivers | 2 |
| Number of I/Os | 8 |
| Number of Receivers | 2 |
| Number of Transceivers | 1 |
| Number of Transmitters | 2 |
| Operating Supply Voltage | 5V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Propagation Delay | 10us |
| Receiver Hysteresis | 500mV |
| RoHS Compliant | Yes |
| Simplex/Duplex | Full Duplex |
| Supply Current | 10mA |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX232CSE+ Datasheet
Download the complete datasheet for Maxim MAX232CSE+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

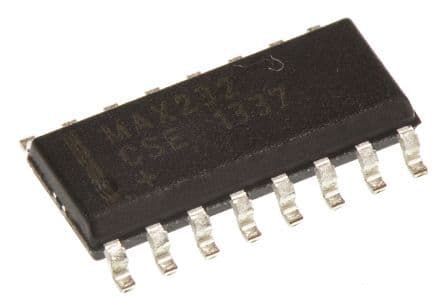

Product Images
