Full duplex RS-232 transceiver, surface mount, SOIC package. Features 2 drivers and 2 receivers, operating at 120Kbps data rate. Supports 4.5V to 5.5V supply voltage with a typical 5V operating voltage. RoHS compliant with lead-free construction, suitable for temperatures from 0°C to 70°C.
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX232ECSE+ technical specifications.
General
Package/Case
SOIC
Data Rate
120Kbps
Height
1.5mm
Interface
RS-232
Lead Free
Lead Free
Length
10mm
Logic Function
Transceiver, Receiver
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Drivers
2
Number of Receivers
2
Number of Transceivers
1
Number of Transmitters
2
Operating Supply Current
10mA
Operating Supply Voltage
5V
Packaging
Rail/Tube
Propagation Delay
10us
Receiver Hysteresis
500mV
RoHS Compliant
Yes
Simplex/Duplex
Full Duplex
Weight
0.019312oz
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Maxim MAX232ECSE+ Datasheet
Download the complete datasheet for Maxim MAX232ECSE+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

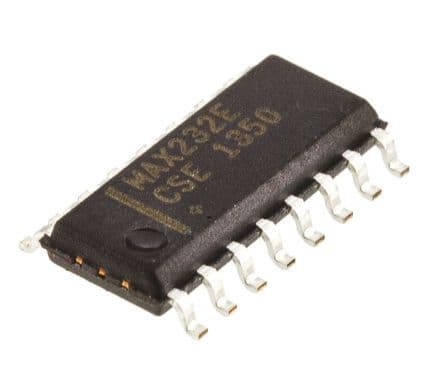

Product Images
