Full-duplex line transceiver IC supporting RS-232 interface with 2 drivers and 2 receivers. Operates from a 4.5V to 5.5V supply voltage, featuring a 5V nominal operating voltage and 10mA supply current. Offers a 120Kbps data rate and 1µs propagation delay, with 500mV receiver hysteresis. Packaged in a 16-pin SOIC (SOIC-16) surface-mount format.
PackageSOIC
Current10mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX232EEWE technical specifications.
General
| Package/Case | SOIC |
| Data Rate | 120Kbps |
| Interface | RS-232 |
| Lead Free | Contains Lead |
| Logic Function | Transceiver, Receiver |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Drivers | 2 |
| Number of Receivers | 2 |
| Number of Transceivers | 1 |
| Number of Transmitters | 2 |
| Operating Supply Voltage | 5V |
| Package Quantity | 46 |
| Packaging | Rail/Tube |
| Propagation Delay | 1us |
| Radiation Hardening | No |
| Receiver Hysteresis | 500mV |
| RoHS Compliant | No |
| Simplex/Duplex | Full Duplex |
| Supply Current | 10mA |
| Termination | SMD/SMT |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Maxim MAX232EEWE Datasheet
Download the complete datasheet for Maxim MAX232EEWE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

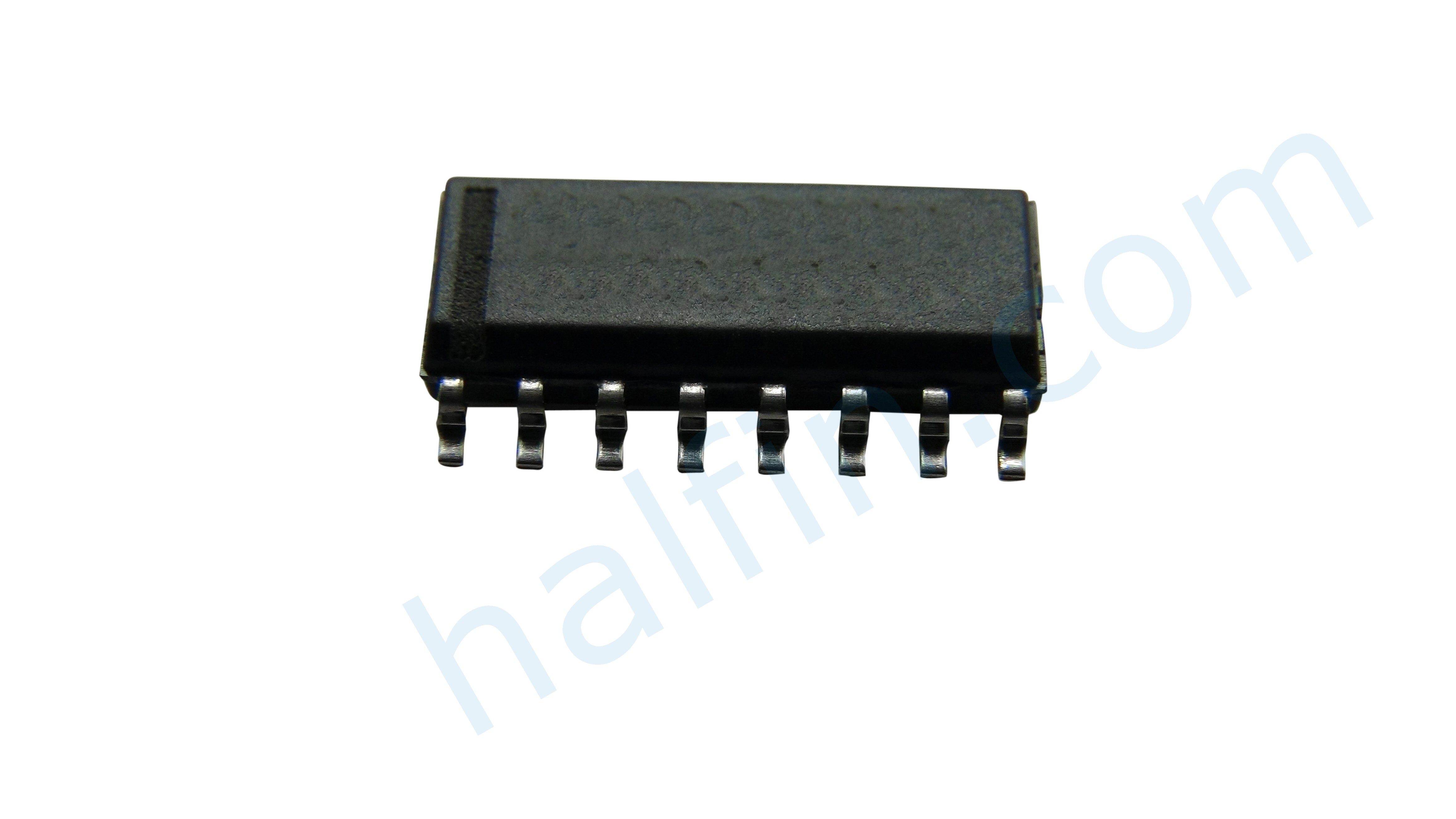

Product Images
