Technical Specifications
Maxim MAX235EPG+G36 technical specifications.
General
| Package/Case | DIP |
| Data Rate | 120Kbps |
| Interface | RS-232 |
| Logic Function | Transceiver, Receiver |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Mount | Through Hole |
| Number of Drivers | 5 |
| Number of I/Os | 20 |
| Number of Receivers | 5 |
| Number of Transceivers | 1 |
| Number of Transmitters | 5 |
| Operating Supply Voltage | 5V |
| Package Quantity | 16 |
| Packaging | Rail/Tube |
| Propagation Delay | 10us |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Supply Current | 15mA |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX235EPG+G36 Datasheet
Download the complete datasheet for Maxim MAX235EPG+G36 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

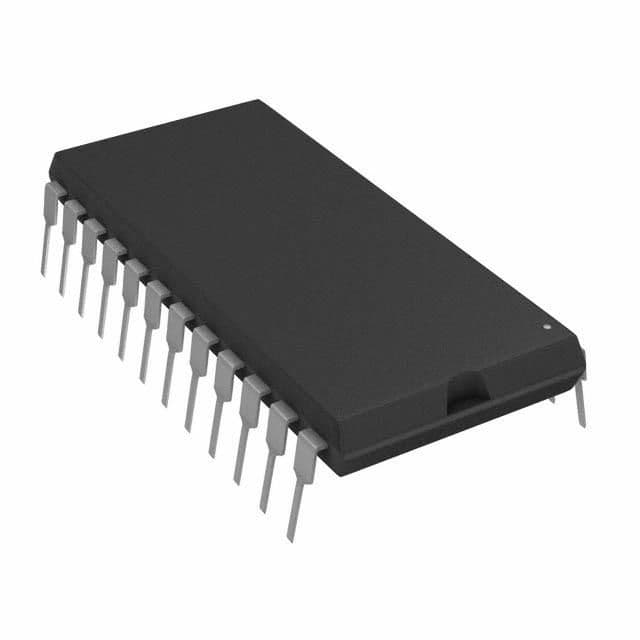

Product Images
