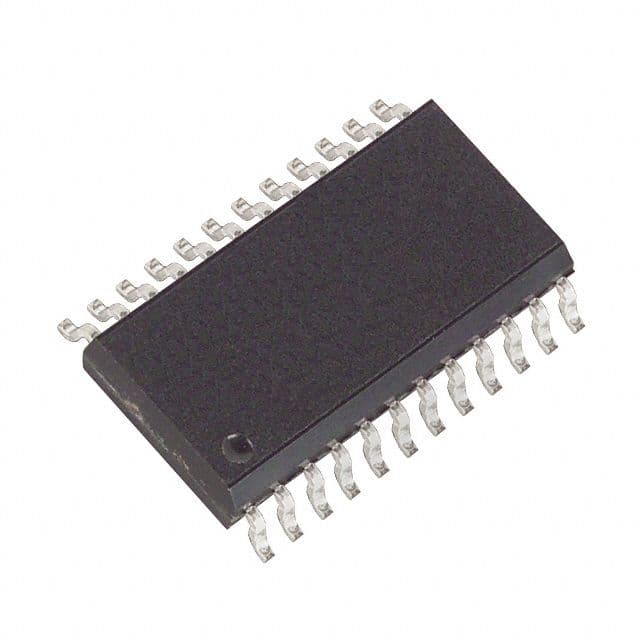

Full duplex transceiver IC for RS-232 interfaces, featuring 4 drivers and 3 receivers. This surface-mount SOIC package operates with a 4.5V to 5.5V supply voltage, consuming 15mA of supply current. Achieving a 120Kbps data rate, it offers a 10µs propagation delay and 500mV receiver hysteresis. Designed for robust performance, it operates across a -40°C to 85°C temperature range and is RoHS compliant.
PackageSOIC
Current15mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX236EWG+ technical specifications.
General
Package/Case
SOIC
Data Rate
120Kbps
Interface
RS-232
Lead Free
Lead Free
Logic Function
Transceiver, Receiver
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Drivers
4
Number of I/Os
14
Number of Receivers
3
Number of Transceivers
1
Number of Transmitters
4
Operating Supply Voltage
5V
Package Quantity
30
Packaging
Rail/Tube
Propagation Delay
10us
Reach SVHC Compliant
Unknown
Receiver Hysteresis
500mV
RoHS Compliant
Yes
Simplex/Duplex
Full Duplex
Supply Current
15mA
Compliance
RoHS
Compliant
Datasheet
Maxim MAX236EWG+ Datasheet
Download the complete datasheet for Maxim MAX236EWG+ to view detailed technical specifications.
