Full-duplex RS-232 transceiver, operating at 120 kbps, features four drivers and four receivers. This surface mount integrated circuit supports a 4.5V to 5.5V supply voltage range, with a typical operating voltage of 5V and 15mA current consumption. The SOIC package measures 15.6mm in length, 7.6mm in width, and 2.35mm in height, with a propagation delay of 10µs. Operating temperature range is 0°C to 70°C, and the component is RoHS compliant.
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX238CWG+ technical specifications.
General
Package/Case
SOIC
Data Rate
120Kbps
Height
2.35mm
Interface
RS-232
Lead Free
Lead Free
Length
15.6mm
Logic Function
Transceiver, Receiver
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Drivers
4
Number of Receivers
4
Number of Transceivers
1
Number of Transmitters
4
Operating Supply Current
15mA
Operating Supply Voltage
5V
Package Quantity
30
Packaging
Rail/Tube
Propagation Delay
10us
Reach SVHC Compliant
Unknown
Receiver Hysteresis
500mV
RoHS Compliant
Yes
Simplex/Duplex
Full Duplex
Weight
0.010857oz
Width
7.6mm
Compliance
RoHS
Compliant
Datasheet
Maxim MAX238CWG+ Datasheet
Download the complete datasheet for Maxim MAX238CWG+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

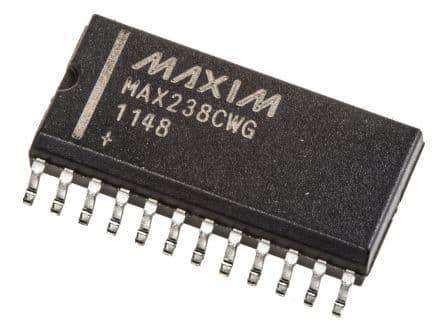

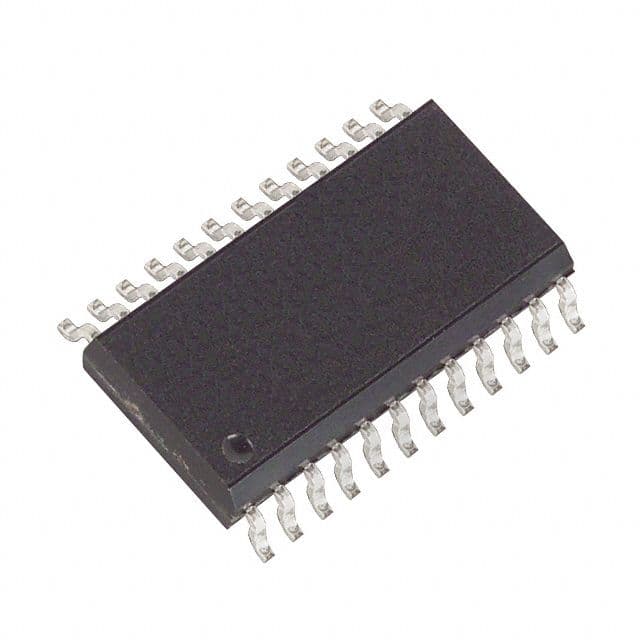

Product Images
