The MAX2657EWT+T is a single-channel RF amplifier from Maxim, operating within a frequency range of 1 GHz to 2 GHz. It has a maximum power dissipation of 840 mW and a noise figure of 0.8 dB. The amplifier is RoHS compliant and is packaged in a WLP package. It is designed to operate within a temperature range of -40°C to 85°C, with a supply voltage of 2.85V and a supply current of 4.1mA.
Frequency1.57542GHz
Current4.1mA
Quick Jump:
Technical Specifications
Maxim MAX2657EWT+T technical specifications.
General
| Contact Plating | Copper, Tin, Silver |
| Frequency | 1.57542GHz |
| Gain | 19.5dB |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 840mW |
| Noise Figure | 0.8dB |
| Number of Channels | 1 |
| Operating Frequency | 1 GHz to 2 GHz |
| Operating Supply Current | 4.1mA |
| Operating Supply Voltage | 2.85V |
| P1dB | -12.5dBm |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Supply Current | 4.1mA |
| Test Frequency | 1.57542GHz |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX2657EWT+T Datasheet
Download the complete datasheet for Maxim MAX2657EWT+T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

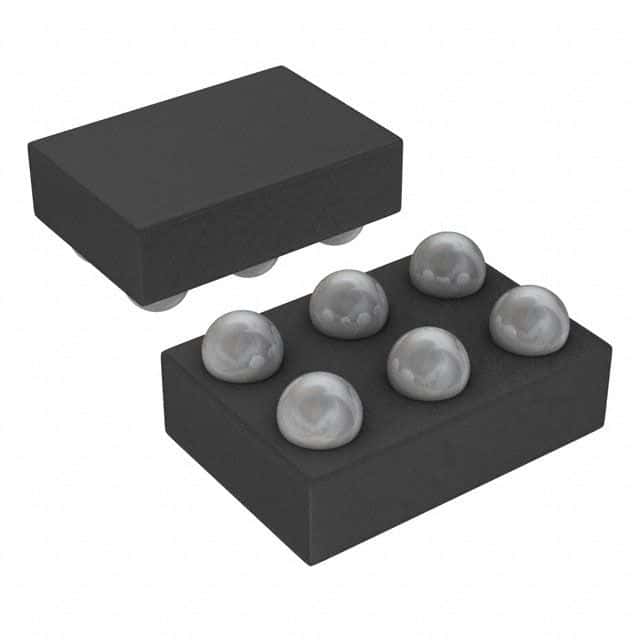

Product Images
