8-channel, 3-state logic translator IC with a 35Mbps data rate. Features a 1.65V to 5.5V supply voltage range and 8.5ns propagation delay. Operates from -40°C to 85°C with 20uA low-level output current and -20uA high-level output current. Packaged in a 20-pin TSSOP on tape and reel, this lead-free, RoHS compliant component offers 8 bits of translation.
PackageTSSOP
Quick Jump:
Technical Specifications
Maxim MAX3001EEUP+T technical specifications.
General
Package/Case
TSSOP
Data Rate
35Mbps
High Level Output Current
-20uA
Lead Free
Lead Free
Logic Function
Translator
Low Level Output Current
20uA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.65V
Number of Bits
8
Number of Channels
8
Output Type
3-STATE
Package Quantity
2500
Packaging
Tape and Reel
Propagation Delay
8.5ns
Quiescent Current
50uA
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Maxim MAX3001EEUP+T Datasheet
Download the complete datasheet for Maxim MAX3001EEUP+T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

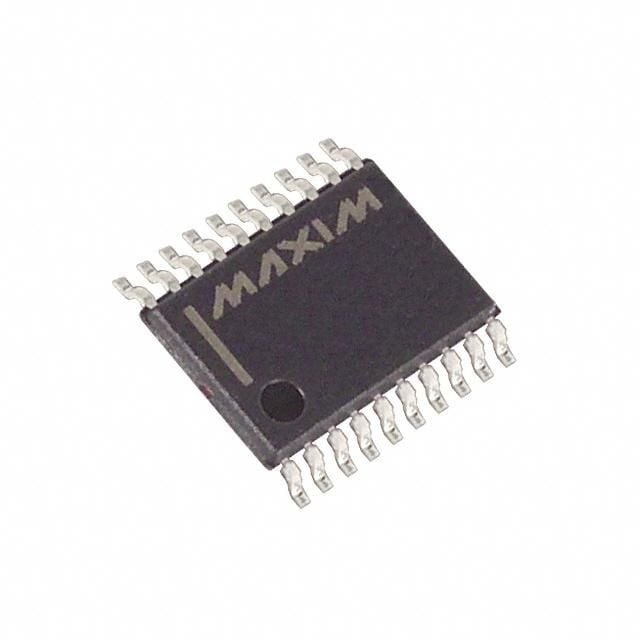

Product Images
