Quad RS-485/RS-422 transceiver IC for robust serial communication. Features a 2.5Mbps data rate and operates from a 4.75V to 5.25V supply. Designed for surface mount installation in a 16-TSSOP package, this lead-free component offers four drivers and transmitters. It functions reliably across an industrial temperature range of -40°C to 85°C.
PackageTSSOP
Current2mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX3041EUE+ technical specifications.
General
| Package/Case | TSSOP |
| Data Rate | 2.5Mbps |
| Interface | RS-422, RS-485 |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Mount | Surface Mount |
| Number of Drivers | 4 |
| Number of Transmitters | 4 |
| Operating Supply Voltage | 5V |
| Package Quantity | 96 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Supply Current | 2mA |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX3041EUE+ Datasheet
Download the complete datasheet for Maxim MAX3041EUE+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

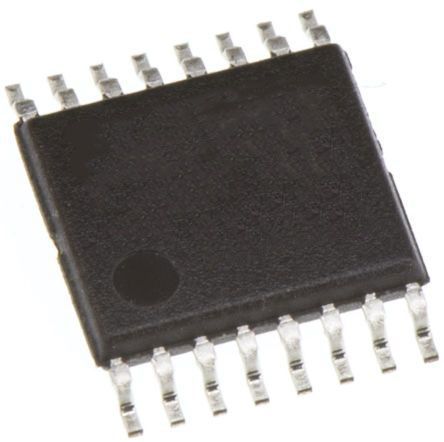

Product Images
