Single-channel UART interface IC supporting SPI and RS-232 protocols. Features a 16-byte FIFO buffer, operating at data rates up to 115.2Kbps and a frequency of 3.69MHz. This QSOP-packaged component is lead-free and RoHS compliant, with an operating voltage range of 2.7V to 5.5V and a maximum supply current of 1mA. Designed for a wide temperature range from -40°C to 85°C.
Frequency3.69MHz
PackageQSOP
Quick Jump:
Technical Specifications
Maxim MAX3100EEE+ technical specifications.
General
| Package/Case | QSOP |
| Data Rate | 115.2Kbps |
| Frequency | 3.69MHz |
| Height | 1.75mm |
| Interface | SPI, RS-232, UART |
| Lead Free | Lead Free |
| Length | 4.98mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 1mA |
| Max Supply Voltage | 5.5V |
| Memory Size | 8B |
| Min Supply Voltage | 2.7V |
| Number of Channels | 1 |
| Operating Supply Current | 150uA |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Weight | 0.010159oz |
| Width | 3.99mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX3100EEE+ Datasheet
Download the complete datasheet for Maxim MAX3100EEE+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

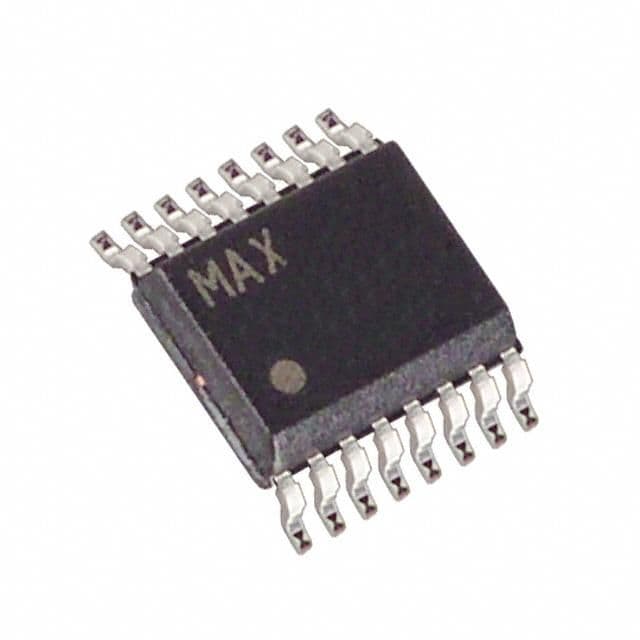

Product Images
