Dual-port, full-duplex transceiver supporting RS-232, RS-422, and RS-485 interfaces. Features a 10Mbps data rate and operates from a 3V to 5.5V supply. This surface-mount component, housed in an SSOP package, offers 2 drivers and 2 receivers with a propagation delay of 0.15µs. Operating temperature range is -40°C to 85°C.
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX3162EAI+ technical specifications.
General
Package/Case
SSOP
Data Rate
10Mbps
Height
1.78mm
Interface
RS-232, RS-422, RS-485
Lead Free
Lead Free
Length
10.33mm
Logic Function
Transceiver
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Drivers
2
Number of Receivers
2
Number of Transceivers
2
Number of Transmitters
2
Operating Supply Current
2.5mA
Packaging
Rail/Tube
Propagation Delay
0.15us
Reach SVHC Compliant
No
Receiver Hysteresis
500mV
RoHS Compliant
Yes
Simplex/Duplex
Full Duplex
Weight
0.080001oz
Width
5.38mm
Compliance
RoHS
Compliant
Datasheet
Maxim MAX3162EAI+ Datasheet
Download the complete datasheet for Maxim MAX3162EAI+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

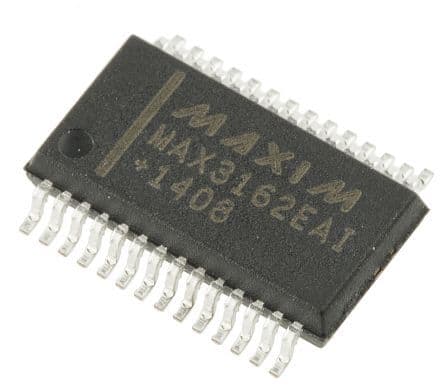

Product Images
