Full-duplex RS-232 transceiver IC, featuring a 235Kbps data rate and 1 driver/1 receiver configuration. Operates from a 3V to 5.5V supply voltage with a low 1mA operating supply current. Packaged in a 16-SSOP surface-mount format, this lead-free and RoHS compliant component offers a propagation delay of 0.3µs and 300mV receiver hysteresis. Suitable for applications requiring reliable serial communication across a wide temperature range of -40°C to 85°C.
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX3221EAE+ technical specifications.
General
| Package/Case | SSOP |
| Data Rate | 235Kbps |
| Height | 1.78mm |
| Lead Free | Lead Free |
| Length | 6.33mm |
| Logic Function | Transceiver, Receiver |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Drivers | 1 |
| Number of Receivers | 1 |
| Number of Transceivers | 1 |
| Number of Transmitters | 1 |
| Operating Supply Current | 1mA |
| Packaging | Rail/Tube |
| Propagation Delay | 0.3us |
| Receiver Hysteresis | 300mV |
| RoHS Compliant | Yes |
| Simplex/Duplex | Full Duplex |
| Weight | 0.004586oz |
| Width | 5.38mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX3221EAE+ Datasheet
Download the complete datasheet for Maxim MAX3221EAE+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

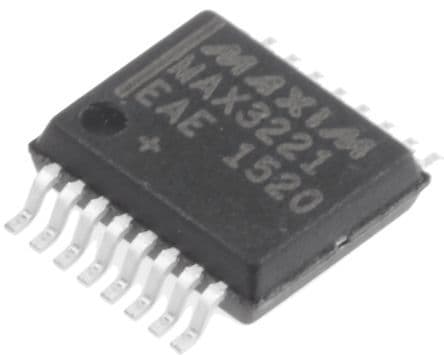

Product Images
