Full duplex transceiver IC featuring two drivers and two receivers, supporting RS-232 interface with a data rate of 235Kbps. Operates from a 3V to 5.5V supply voltage, with a maximum operating temperature of 70°C. This through-hole mounted component is packaged in PDIP with a propagation delay of 0.3us and 300mV receiver hysteresis. RoHS compliant and lead-free.
PackagePDIP
Current1mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Maxim MAX3222CPN+ technical specifications.
General
Package/Case
PDIP
Data Rate
235Kbps
Height
4.45mm
Interface
RS-232
Lead Free
Lead Free
Length
23.24mm
Logic Function
Transceiver, Receiver
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Mount
Through Hole
Number of Drivers
2
Number of I/Os
8
Number of Receivers
2
Number of Transceivers
1
Number of Transmitters
2
Package Quantity
20
Packaging
Rail/Tube
Propagation Delay
0.3us
Reach SVHC Compliant
No
Receiver Hysteresis
300mV
RoHS Compliant
Yes
Simplex/Duplex
Full Duplex
Supply Current
1mA
Width
7.87mm
Compliance
RoHS
Compliant
Datasheet
Maxim MAX3222CPN+ Datasheet
Download the complete datasheet for Maxim MAX3222CPN+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

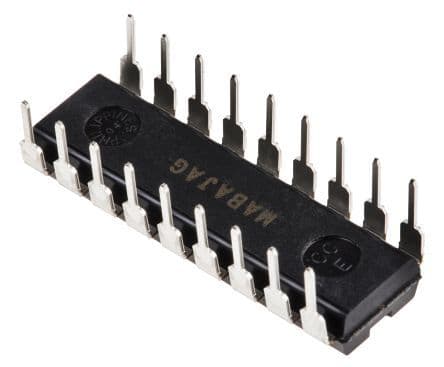

Product Images
