RS-232 transceiver, surface mount, SOIC package, operating from 3V to 5.5V supply voltage. Features a 235Kbps data rate with 2 drivers and 2 receivers. Offers 8 I/Os and a propagation delay of 0.3µs. RoHS compliant with a maximum operating temperature of 70°C.
PackageSOIC
Current1mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX3222CWN+ technical specifications.
General
Package/Case
SOIC
Data Rate
235Kbps
Height
2.35mm
Interface
RS-232
Lead Free
Lead Free
Length
11.75mm
Logic Function
Transceiver, Receiver
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Drivers
2
Number of I/Os
8
Number of Receivers
2
Number of Transceivers
1
Number of Transmitters
2
Package Quantity
40
Packaging
Rail/Tube
Propagation Delay
0.3us
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Supply Current
1mA
Width
7.6mm
Compliance
RoHS
Compliant
Datasheet
Maxim MAX3222CWN+ Datasheet
Download the complete datasheet for Maxim MAX3222CWN+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

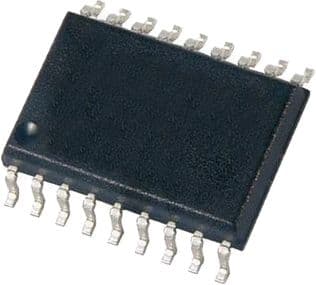

Product Images
