RS-232 transceiver IC with two drivers and two receivers, operating at up to 235Kbps. Features a 3V to 5.5V supply voltage range and 1mA supply current. Packaged in a 16-pin PDIP for through-hole mounting, with dimensions of 19.43mm length, 7.87mm width, and 4.45mm height. Suitable for applications requiring robust RS-232 communication within a 0°C to 70°C operating temperature range.
PackagePDIP
Current1mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Maxim MAX3232CPE+ technical specifications.
General
Package/Case
PDIP
Data Rate
235Kbps
Height
4.45mm
Interface
RS-232
Lead Free
Lead Free
Length
19.43mm
Logic Function
Transceiver, Receiver
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Mount
Through Hole
Number of Drivers
2
Number of I/Os
8
Number of Receivers
2
Number of Transceivers
1
Number of Transmitters
2
Package Quantity
25
Packaging
Rail/Tube
Propagation Delay
0.3us
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
1mA
Width
7.87mm
Compliance
RoHS
Compliant
Datasheet
Maxim MAX3232CPE+ Datasheet
Download the complete datasheet for Maxim MAX3232CPE+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

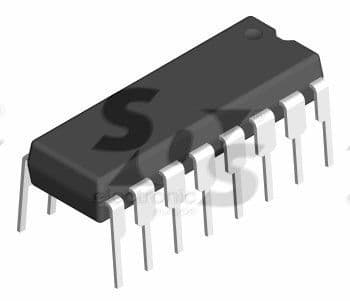

Product Images
