Surface mount transceiver IC for RS-232 interfaces, operating at 250Kbps with a 3V to 5.5V supply voltage. Features 2 drivers and 2 receivers, supporting a logic function as a transceiver and receiver. This component offers a propagation delay of 0.15us and a low supply current of 1mA, with an operating temperature range of -40°C to 85°C. Packaged in a 16-TQFN, it is RoHS compliant.
Current1mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX3232EETE+ technical specifications.
General
Data Rate
250Kbps
Height
0.75mm
Interface
RS-232
Length
5.1mm
Logic Function
Transceiver, Receiver
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Drivers
2
Number of I/Os
8
Number of Receivers
2
Number of Transceivers
1
Number of Transmitters
2
Package Quantity
60
Packaging
Rail/Tube
Propagation Delay
0.15us
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Supply Current
1mA
Width
5.1mm
Compliance
RoHS
Compliant
Datasheet
Maxim MAX3232EETE+ Datasheet
Download the complete datasheet for Maxim MAX3232EETE+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

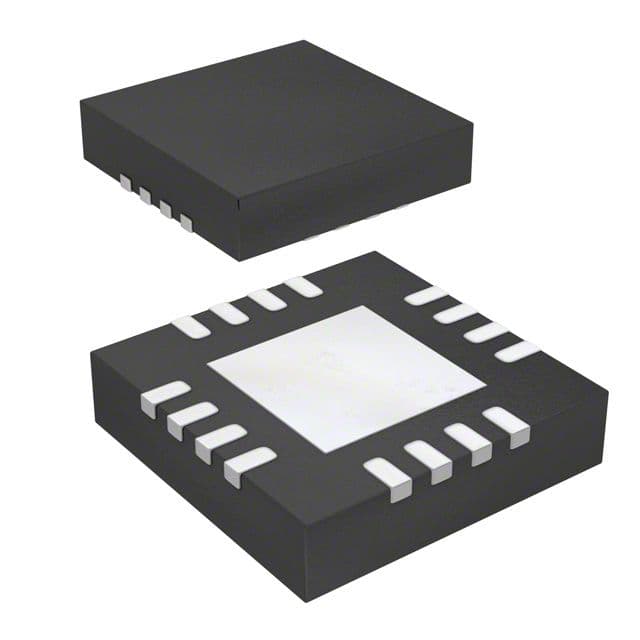

Product Images
