Low-power RS-232 transceiver IC featuring 2 drivers and 2 receivers. Surface mountable in a 16-TSSOP package with dimensions of 5.1mm length, 4.5mm width, and 0.95mm height. Operates from a 3V to 5.5V supply voltage with a typical operating current of 1mA. Supports data rates up to 250Kbps with a propagation delay of 0.15us. Suitable for applications requiring reliable serial communication within a -40°C to 85°C temperature range. RoHS compliant.
PackageTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX3232EEUE+ technical specifications.
General
Package/Case
TSSOP
Data Rate
250Kbps
Height
0.95mm
Interface
RS-232
Lead Free
Lead Free
Length
5.1mm
Logic Function
Transceiver, Receiver
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Drivers
2
Number of Receivers
2
Number of Transceivers
1
Number of Transmitters
2
Operating Supply Current
1mA
Operating Supply Voltage
5V
Package Quantity
96
Packaging
Rail/Tube
Propagation Delay
0.15us
Reach SVHC Compliant
No
RoHS Compliant
Yes
Weight
0.006102oz
Width
4.5mm
Compliance
RoHS
Compliant
Datasheet
Maxim MAX3232EEUE+ Datasheet
Download the complete datasheet for Maxim MAX3232EEUE+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

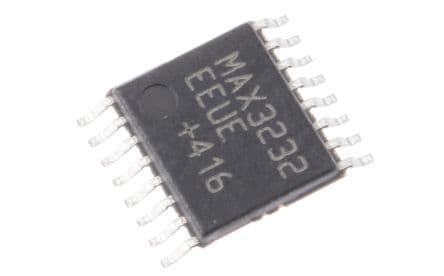

Product Images
