Surface mountable RS-232 transceiver IC with 2 drivers and 2 receivers, operating from a 3V to 5.5V single supply. Features a 235Kbps data rate and 0.3µs propagation delay, with a maximum operating temperature of 85°C. This lead-free, RoHS-compliant component is housed in a 16-SOIC package.
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX3232ESE+ technical specifications.
General
Package/Case
SOIC
Data Rate
235Kbps
Height
1.5mm
Lead Free
Lead Free
Length
10mm
Logic Function
Transceiver, Receiver
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Drivers
2
Number of Receivers
2
Number of Transceivers
1
Number of Transmitters
2
Operating Supply Current
1mA
Operating Supply Voltage
5V
Package Quantity
50
Packaging
Rail/Tube
Propagation Delay
0.3us
RoHS Compliant
Yes
Supply Type
Single
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Maxim MAX3232ESE+ Datasheet
Download the complete datasheet for Maxim MAX3232ESE+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

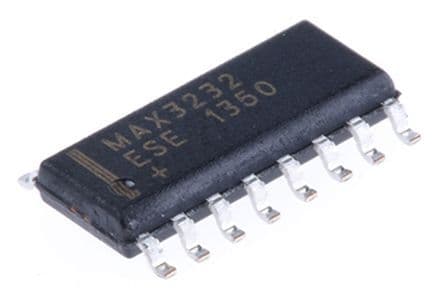

Product Images
