Quad channel analog switch, SPDT, featuring 4 independent switches. Offers a low on-state resistance of 35 ohms and a drain-to-source resistance of 140 ohms. Operates with dual supply voltages from 5V to 18V, with a maximum supply voltage of 30V. This through-hole component is housed in a 20-pin PDIP package and is RoHS compliant.
PackagePDIP
Current130uA
MountingThrough Hole
Quick Jump:
Technical Specifications
Maxim MAX333CPP+ technical specifications.
General
| Package/Case | PDIP |
| Drain to Source Resistance | 140R |
| Dual Supply Voltage | 9V |
| Height | 4.45mm |
| Lead Free | Lead Free |
| Length | 26.54mm |
| Max Dual Supply Voltage | 18V |
| Min Dual Supply Voltage | 5V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Power Dissipation | 600mW |
| Max Supply Current | 130uA |
| Max Supply Voltage | 30V |
| Min Supply Voltage | 10V |
| Mount | Through Hole |
| Number of Bits | 4 |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Number of Switches | 4 |
| On-State Resistance | 35R |
| Operating Supply Current | 1uA |
| Operating Supply Voltage | 18V |
| Package Quantity | 18 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 130uA |
| Supply Type | Single, Dual |
| Throw Configuration | SPDT |
| Width | 7.87mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX333CPP+ Datasheet
Download the complete datasheet for Maxim MAX333CPP+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

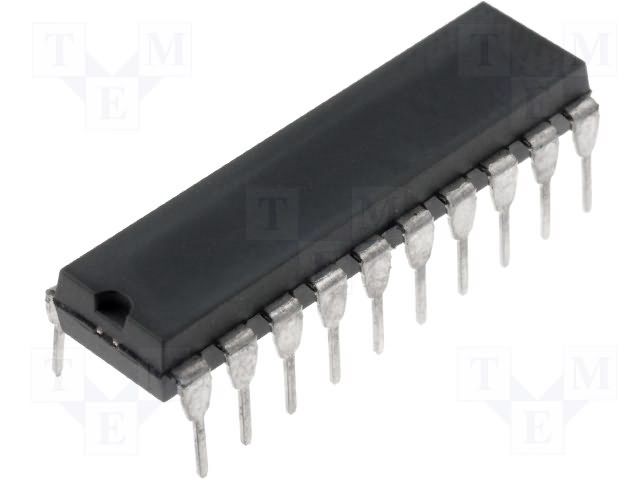

Product Images
