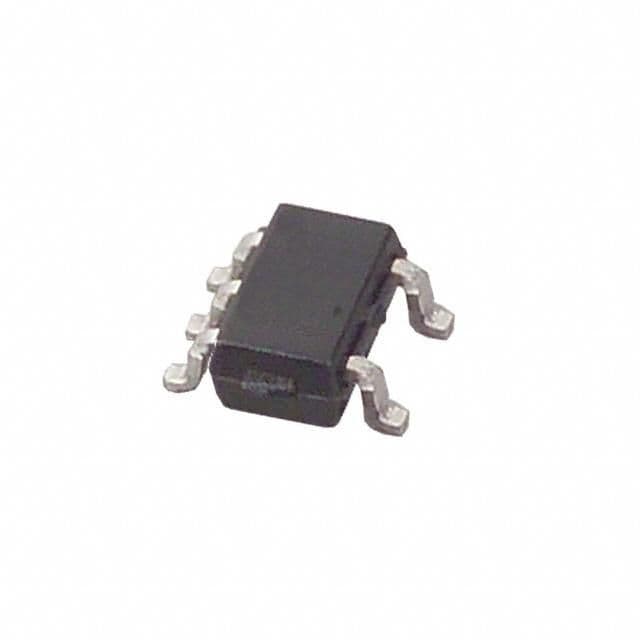

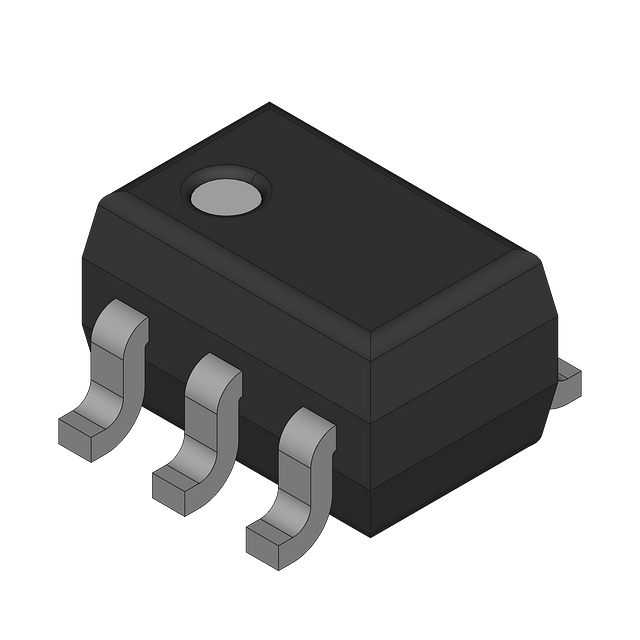

Bidirectional logic translator IC, operating at 3Mbps data rates. Features a 2.5V to 5.5V supply voltage range and 50ns propagation delay. Surface mountable in an SC package with a 1.35mm width, 2.2mm length, and 1mm height. Offers 1mA output current and operates between -40°C and 85°C. RoHS compliant.
PackageSC
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX3370EXK+T technical specifications.
General
| Package/Case | SC |
| Channel Type | Bidirectional |
| Data Rate | 3Mbps |
| Height | 1mm |
| High Level Output Current | -20uA |
| Length | 2.2mm |
| Logic Function | Translator |
| Low Level Output Current | 1mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 245mW |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.5V |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Inputs | 1 |
| Output Current | 1mA |
| Packaging | Cut Tape |
| Propagation Delay | 50ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Turn-On Delay Time | 800ns |
| Weight | 0.000705oz |
| Width | 1.35mm |
Compliance
| RoHS | Compliant |
