Full duplex transceiver IC for RS-232 interfaces, featuring 3 drivers and 2 receivers. Operates with supply voltages from 3V to 5.5V, supporting a data rate of 250Kbps. This surface mount component is housed in a 20-pin TSSOP package with dimensions of 6.6mm (L) x 4.5mm (W) x 0.95mm (H). RoHS compliant with a maximum operating temperature of 70°C.
PackageTSSOP
Current1mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX3386ECUP+ technical specifications.
General
| Package/Case | TSSOP |
| Data Rate | 250Kbps |
| Height | 0.95mm |
| Interface | RS-232 |
| Lead Free | Lead Free |
| Length | 6.6mm |
| Logic Function | Transceiver, Receiver |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Drivers | 3 |
| Number of I/Os | 10 |
| Number of Receivers | 2 |
| Number of Transceivers | 1 |
| Number of Transmitters | 3 |
| Package Quantity | 74 |
| Packaging | Rail/Tube |
| Propagation Delay | 0.15us |
| Reach SVHC Compliant | Unknown |
| Receiver Hysteresis | 500mV |
| RoHS Compliant | Yes |
| Simplex/Duplex | Full Duplex |
| Supply Current | 1mA |
| Width | 4.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX3386ECUP+ Datasheet
Download the complete datasheet for Maxim MAX3386ECUP+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

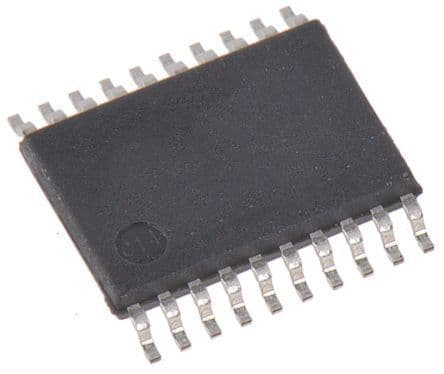

Product Images
