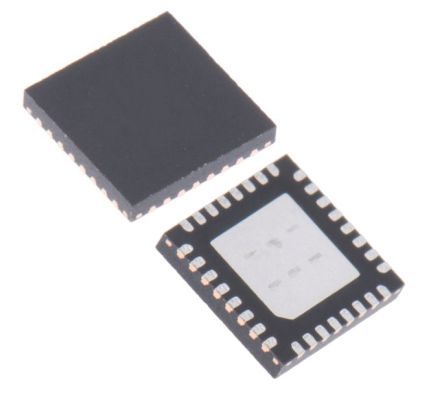

USB 2.0 peripheral/host controller IC supporting 12Mbps data rates. Features SPI interface, 1 port, and 1 transceiver. Operates from -40°C to 85°C with 4.3V output voltage and 15mA operating supply current. Includes ESD protection and 8 outputs. Packaged in a 5.1mm x 5.1mm x 0.8mm 32-TQFN package. RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Maxim MAX3421EETJ+ datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Data Rate | 12Mbps |
| ESD Protection | Yes |
| Frequency | 26MHz |
| Height | 0.8mm |
| Interface | SPI |
| Lead Free | Lead Free |
| Length | 5.1mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Number of Outputs | 8 |
| Number of Ports | 1 |
| Number of Transceivers | 1 |
| Operating Supply Current | 15mA |
| Output Voltage | 4.3V |
| Package Quantity | 60 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| USB Standard | USB 2.0 |
| Width | 5.1mm |
| RoHS | Compliant |
Download the complete datasheet for Maxim MAX3421EETJ+ to view detailed technical specifications.
