Surface mountable transceiver IC for RS-485 and RS-422 interfaces. Features half-duplex operation with one driver and one receiver, supporting data rates up to 64Kbps. Operates from a 2.5V to 5.5V supply voltage with a low 1.6µA supply current. Packaged in an 8-UMAX with dimensions of 3.1mm x 3.1mm x 0.95mm. RoHS compliant with a maximum operating temperature of 70°C.
PackageUMAX
Current1.6uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX3471CUA+ technical specifications.
General
Package/Case
UMAX
Data Rate
64Kbps
Height
0.95mm
Interface
RS-422, RS-485
Lead Free
Lead Free
Length
3.1mm
Logic Function
Transceiver
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Output Current
130mA
Max Power Dissipation
362mW
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Mount
Surface Mount
Number of Drivers
1
Number of Receivers
1
Number of Transceivers
1
Number of Transmitters
1
Operating Supply Current
1.6uA
Packaging
Rail/Tube
Reach SVHC Compliant
Unknown
Receiver Hysteresis
32mV
RoHS Compliant
Yes
Simplex/Duplex
Half Duplex
Supply Current
1.6uA
Width
3.1mm
Compliance
RoHS
Compliant
Datasheet
Maxim MAX3471CUA+ Datasheet
Download the complete datasheet for Maxim MAX3471CUA+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

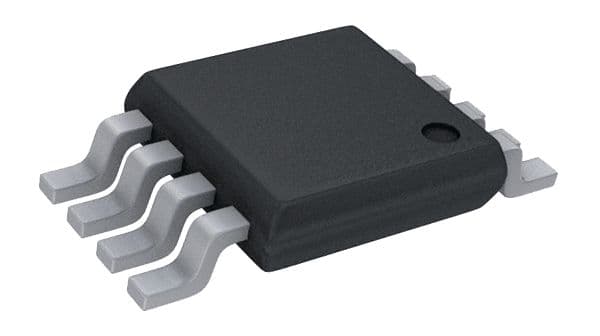

Product Images
