Surface mountable transceiver IC for RS-485 and RS-422 interfaces, operating at 10Mbps data rates. Features half-duplex communication with one driver and one receiver. Housed in an 8-pin SOIC package, it supports a 3V to 3.6V supply voltage range and operates from -40°C to 85°C. This RoHS compliant component offers a propagation delay of 65ns.
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX3485ESA+ technical specifications.
General
Package/Case
SOIC
Data Rate
10Mbps
Height
1.5mm
Interface
RS-422, RS-485
Lead Free
Lead Free
Length
5mm
Logic Function
Transceiver
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
471mW
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Drivers
1
Number of Receivers
1
Number of Transceivers
1
Number of Transmitters
1
Operating Supply Current
1.1mA
Operating Supply Voltage
3.3V
Output Current
20uA
Output Voltage
3V
Packaging
Rail/Tube
Propagation Delay
65ns
Reach SVHC Compliant
No
Receiver Hysteresis
50mV
RoHS Compliant
Yes
Simplex/Duplex
Half Duplex
Weight
0.019048oz
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Maxim MAX3485ESA+ Datasheet
Download the complete datasheet for Maxim MAX3485ESA+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

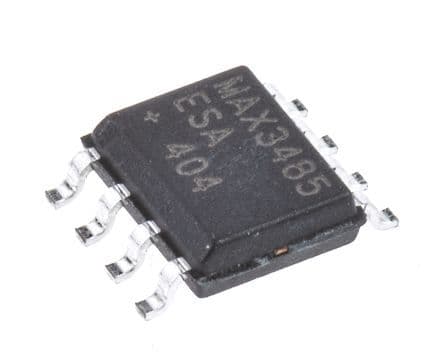

Product Images
