622Mbps Laser Driver IC, featuring a single channel and driver, operates with a 3.14V to 5V supply voltage range and 3.3V typical. This surface mount component, housed in a 5.2mm x 5.2mm x 1.05mm TQFP package, offers a maximum power dissipation of 929mW and an input bias current of 80mA. It functions across an operating temperature range of -40°C to 85°C with a typical supply current of 38mA.
PackageTQFP
Current38mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX3668EHJ+ technical specifications.
General
Package/Case
TQFP
Data Rate
622Mbps
Height
1.05mm
Input Bias Current
80mA
Length
5.2mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
929mW
Max Supply Current
60mA
Max Supply Voltage
5V
Min Supply Voltage
3.14V
Mount
Surface Mount
Number of Channels
1
Number of Drivers
1
Operating Supply Current
38mA
Operating Supply Voltage
3.3V
Package Quantity
360
Packaging
Rail/Tube
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
38mA
Termination
SMD/SMT
Weight
0.002568oz
Width
5.2mm
Compliance
RoHS
Compliant
Datasheet
Maxim MAX3668EHJ+ Datasheet
Download the complete datasheet for Maxim MAX3668EHJ+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

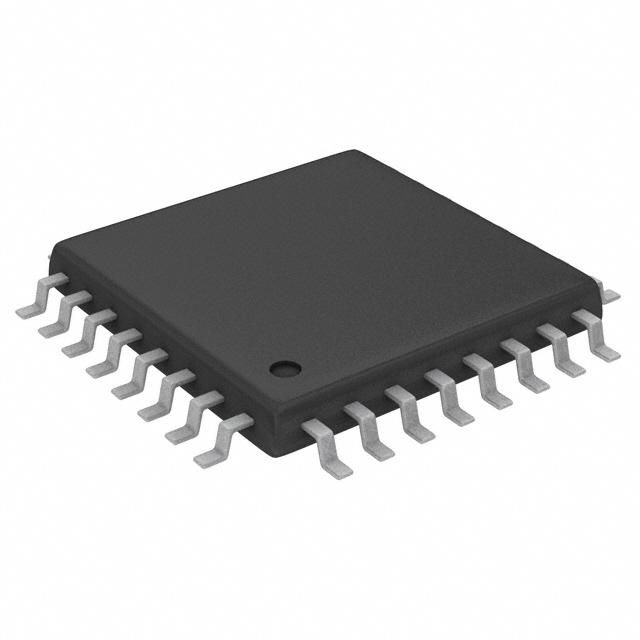

Product Images
