1.65Gbps Video Equalizer IC, featuring a 48-Pin TQFP package for surface mount applications. This specialized IC supports ADC and HDMI interfaces, operating with a 3.3V supply voltage. It offers a single amplifier and channel, with a maximum power dissipation of 2.9W and an operating temperature range of 0°C to 70°C. The component utilizes a serial control interface and is RoHS compliant.
PackageTQFP
Current165mA
MountingSurface Mount
Power2.9W
Quick Jump:
Technical Specifications
Maxim MAX3815CCM+D technical specifications.
General
| Package/Case | TQFP |
| Control Interface | SERIAL |
| Data Rate | 1.65Gbps |
| Height | 1.05mm |
| Interface | ADC, HDMI |
| Lead Free | Lead Free |
| Length | 7.1mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Power Dissipation | 2.896W |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Amplifiers | 1 |
| Number of Channels | 1 |
| Operating Supply Current | 10mA |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 250 |
| Packaging | Tray |
| Power Dissipation | 2.9W |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Supply Current | 165mA |
| Termination | SMD/SMT |
| Width | 7.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX3815CCM+D Datasheet
Download the complete datasheet for Maxim MAX3815CCM+D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

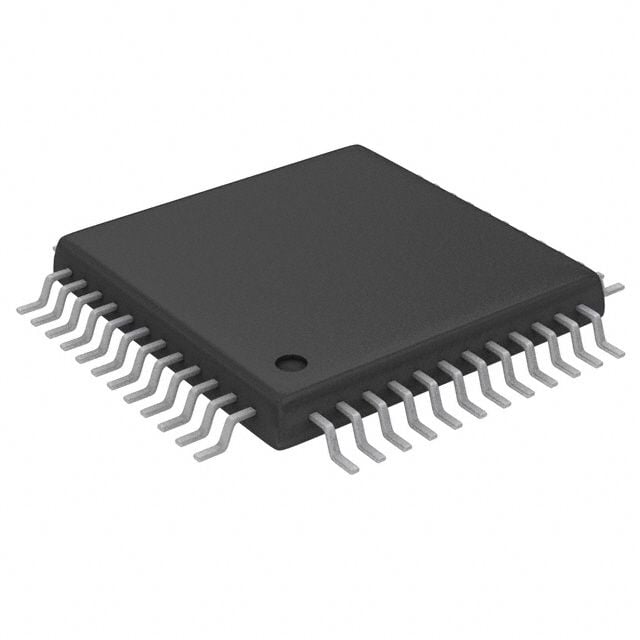

Product Images
