CMOS analog multiplexer IC, surface mountable in a 28-pin SOIC package (18.1mm L x 7.6mm W x 2.35mm H). Features a single channel and single switch configuration with logic interface. Operates with a minimum dual supply voltage of 3V and a maximum of 8V, or a single supply from 2.7V to 16V. Offers a typical supply current of 80nA and a maximum operating temperature of 70°C. RoHS compliant with a propagation delay of 150ns.
PackageSOIC
Current80nA
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX396CWI+ technical specifications.
General
| Package/Case | SOIC |
| Height | 2.35mm |
| Interface | Logic |
| Length | 18.1mm |
| Max Dual Supply Voltage | 8V |
| Min Dual Supply Voltage | 3V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Power Dissipation | 1W |
| Max Supply Voltage | 16V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Switches | 1 |
| Operating Supply Current | 1uA |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Propagation Delay | 150ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Supply Current | 80nA |
| Termination | SMD/SMT |
| Width | 7.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX396CWI+ Datasheet
Download the complete datasheet for Maxim MAX396CWI+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

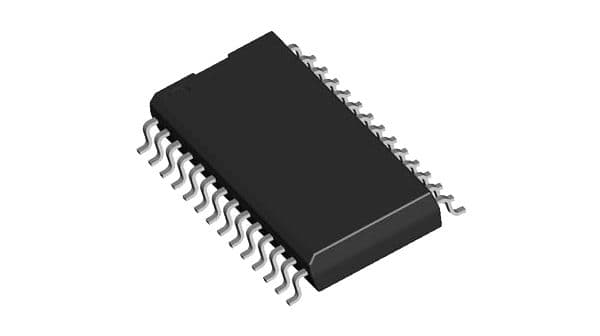

Product Images
