General-purpose current sense amplifier with voltage output. Features a 250kHz bandwidth, 100dB CMRR, and low input offset voltage of 100µV. Operates from a 4.5V to 76V supply voltage with a maximum supply current of 190µA. Packaged in an 8-pin SOIC with dimensions of 5mm (L) x 4mm (W) x 1.5mm (H), suitable for operation between -40°C and 125°C.
PackageSOIC
Current75uA
Quick Jump:
Technical Specifications
Maxim MAX4080SASA+ technical specifications.
General
-3db Bandwidth
250kHz
Bandwidth
250kHz
Package/Case
SOIC
Common Mode Rejection Ratio
100dB
Height
1.5mm
Input Bias Current
5uA
Input Offset Voltage (Vos)
100uV
Length
5mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Current
190uA
Max Supply Voltage
76V
Min Supply Voltage
4.5V
Number of Amplifiers
3
Number of Channels
1
Number of Circuits
1
Operating Supply Current
75uA
Package Quantity
100
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
75uA
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Maxim MAX4080SASA+ Datasheet
Download the complete datasheet for Maxim MAX4080SASA+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

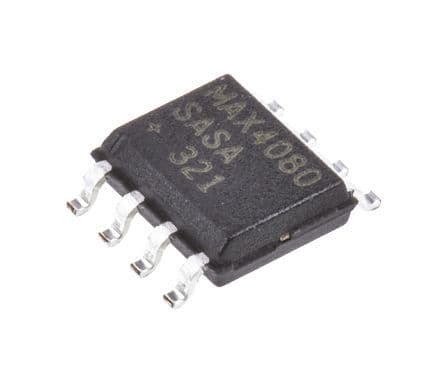

Product Images
