Differential amplifier IC featuring a 175kHz -3dB bandwidth and 0.07V/µs slew rate. This single-circuit, single-channel operational amplifier offers a 70dB Common Mode Rejection Ratio and 90dB Power Supply Rejection Ratio. Operating from a wide supply voltage range of 1.35V to 7.5V, it draws a low 45µA supply current. The device is housed in a surface-mount UMAX package, suitable for operation between -40°C and 85°C.
PackageUMAX
Current45uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX4198EUA+ technical specifications.
General
| -3db Bandwidth | 175kHz |
| Amplifier Type | DIFFERENTIAL |
| Bandwidth | 175kHz |
| Package/Case | UMAX |
| Common Mode Rejection Ratio | 70dB |
| Input Bias Current | 100nA |
| Input Offset Voltage (Vos) | 100uV |
| Max Dual Supply Voltage | 3.75V |
| Min Dual Supply Voltage | 1.35V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 330mW |
| Max Supply Voltage | 7.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Amplifiers | 1 |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Operating Supply Current | 45uA |
| Operating Supply Voltage | 5V |
| Output Current per Channel | 5.5mA |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Supply Rejection Ratio (PSRR) | 90dB |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | Beyond-the-Rails™ |
| Slew Rate | 0.07V/µs |
| Supply Current | 45uA |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX4198EUA+ Datasheet
Download the complete datasheet for Maxim MAX4198EUA+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

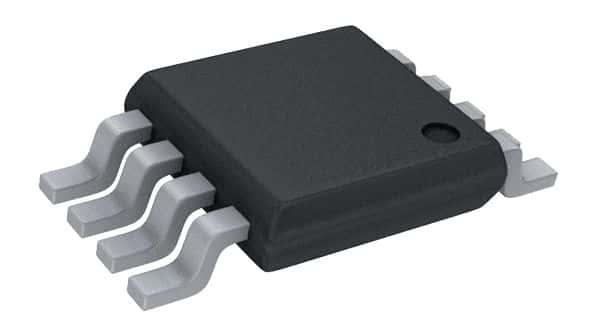

Product Images
