General purpose operational amplifier IC featuring a 3MHz gain bandwidth product and 0.3V/µs slew rate. Offers 2 channels with 68mA output current per channel and a wide operating supply voltage range from 2.4V to 5.5V. Boasts a low input bias current of 1pA and 70µV input offset voltage, with a high 70dB common mode rejection ratio. Surface mountable in a UCSP package, this RoHS compliant component operates from -40°C to 85°C.
Current400uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX4253EBC+T technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Common Mode Rejection Ratio | 70dB |
| Gain Bandwidth Product | 3MHz |
| Input Bias Current | 1pA |
| Input Offset Voltage (Vos) | 70uV |
| Max Dual Supply Voltage | 2.75V |
| Min Dual Supply Voltage | 1.2V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.4V |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Number of Circuits | 2 |
| Operating Supply Current | 420uA |
| Operating Supply Voltage | 2.75V |
| Output Current | 68mA |
| Output Current per Channel | 68mA |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Slew Rate | 0.3V/µs |
| Supply Current | 400uA |
| Voltage Gain | 116dB |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX4253EBC+T Datasheet
Download the complete datasheet for Maxim MAX4253EBC+T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

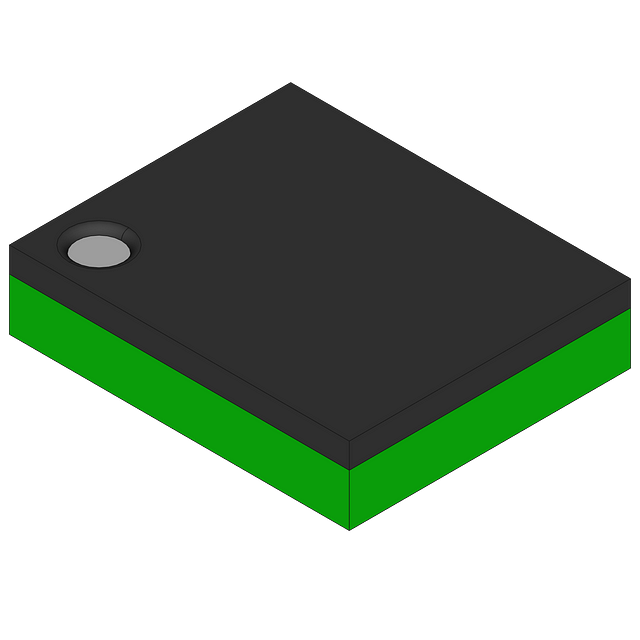

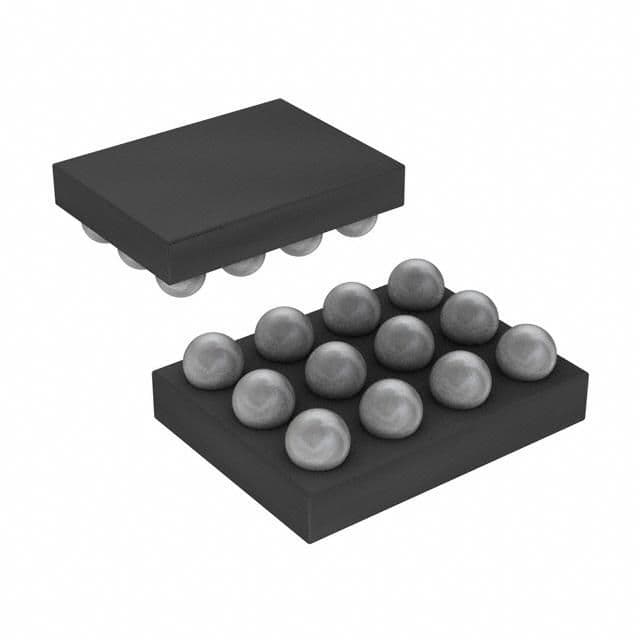

Product Images
