High-performance, single-channel operational amplifier featuring a 400MHz gain bandwidth product and 400MHz -3dB bandwidth. This bipolar IC offers a 900V/µs slew rate and 45mA output current per channel. Designed for surface mount applications, it operates from a 2.25V to 4V dual supply or 4.5V to 8V single supply. The amplifier boasts a 60dB common mode rejection ratio and 60dB power supply rejection ratio, with an input offset voltage of 1mV and input bias current of 3.5µA.
PackageUMAX
MountingSurface Mount
Quick Jump:
Technical Specifications
Maxim MAX4265EUA technical specifications.
General
| -3db Bandwidth | 400MHz |
| Package/Case | UMAX |
| Common Mode Rejection Ratio | 60dB |
| Gain Bandwidth Product | 400MHz |
| Input Bias Current | 3.5uA |
| Input Offset Voltage (Vos) | 1mV |
| Lead Free | Contains Lead |
| Max Dual Supply Voltage | 4V |
| Min Dual Supply Voltage | 2.25V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 330mW |
| Max Supply Voltage | 8V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Operating Supply Current | 28mA |
| Operating Supply Voltage | 5V |
| Output Current per Channel | 45mA |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Supply Rejection Ratio (PSRR) | 60dB |
| Radiation Hardening | No |
| RoHS Compliant | No |
| Slew Rate | 900V/µs |
| Technology | BIPOLAR |
| Voltage Gain | 95dB |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Maxim MAX4265EUA Datasheet
Download the complete datasheet for Maxim MAX4265EUA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

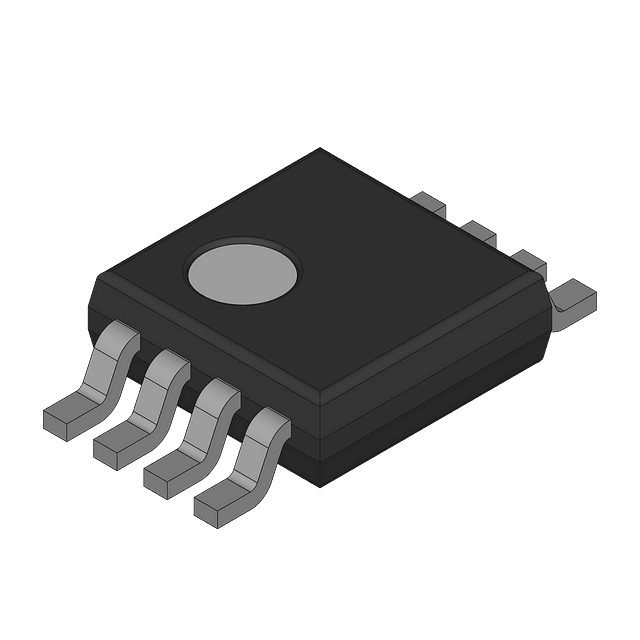

Product Images
