Technical Specifications
Maxim MAX4372TESA+ technical specifications.
General
| -3db Bandwidth | 275kHz |
| Bandwidth | 275kHz |
| Package/Case | SOIC |
| Common Mode Rejection Ratio | 85dB |
| Height | 1.5mm |
| Input Bias Current | 2uA |
| Input Offset Voltage (Vos) | 300uV |
| Length | 5mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 60uA |
| Max Supply Voltage | 28V |
| Min Supply Voltage | 2.7V |
| Number of Amplifiers | 1 |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Operating Supply Current | 30uA |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Supply Current | 30uA |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Maxim MAX4372TESA+ Datasheet
Download the complete datasheet for Maxim MAX4372TESA+ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

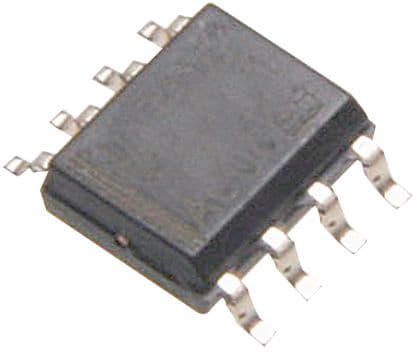

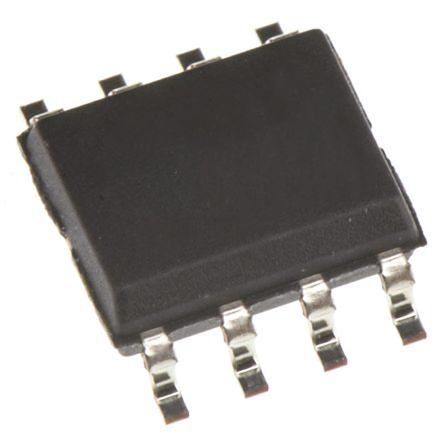

Product Images
